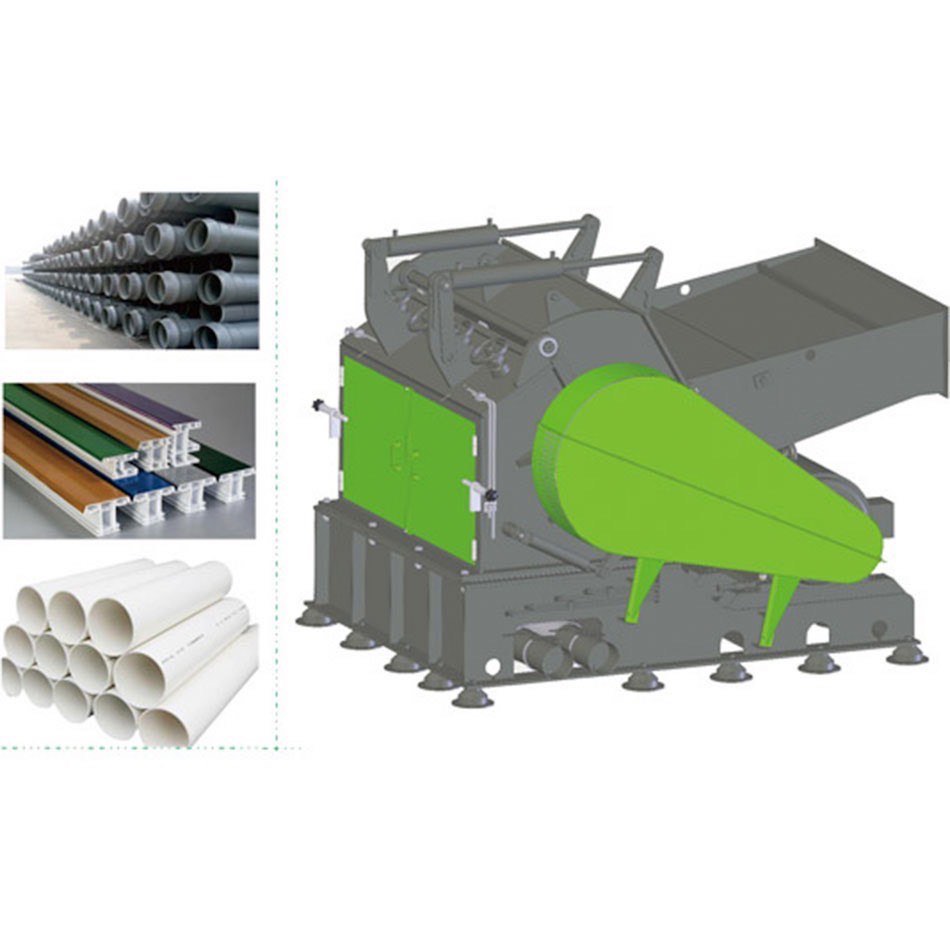

DGP- Pipe, Profile Granulator

Our DGP Series granulators are specially designed to easily feed long plastic parts, profiles and pipe for these difficult plastics recycling applications. The hopper feed is low and nearly parallel to the ground. The DGP is a heavy duty plastic granulator, designed to efficiently meet your plastic recycling needs. These granulators are perfect for: PE, PVC, PP pipes, profile, such as doors, shutters and window trim and plastic sheet. Why manually cut your long parts? Our DGP will eliminate this dangerous and time consuming step in your plastics recycling process.

Specifications

Item Unit DGP600/500 DGP560/700 DGP560/1000 DGP700/1400
Feeding Size mm 440 x440 640 x280 910 x280 1440 x320
Rotor Diameter mm 600 560 560 700
Rotary Speed mm 560 470 470 410
Motor Power kw 37 55 75 110
Rotor Knife pcs 5 x2 5 x2 5 x2 5 x3
Stator Knife pcs 2 2 2 2
Hydraulic Station kw 1.5 1.5 1.5 1.5
Screen Size mm 30-Jun 30-Jun 30-Jun 30-Aug
Crush Chamber Size mm 516 x498 716 x650 985 x650 1400 x700
Machine   Dimension Length A mm 2250 2400 2400 2480
Length B mm 1860 2200 2200 2320
Width C mm 1350 1800 2050 2400
Width D mm 820 1060 1480 1840
Height E mm 1620 1750 1750 1980
