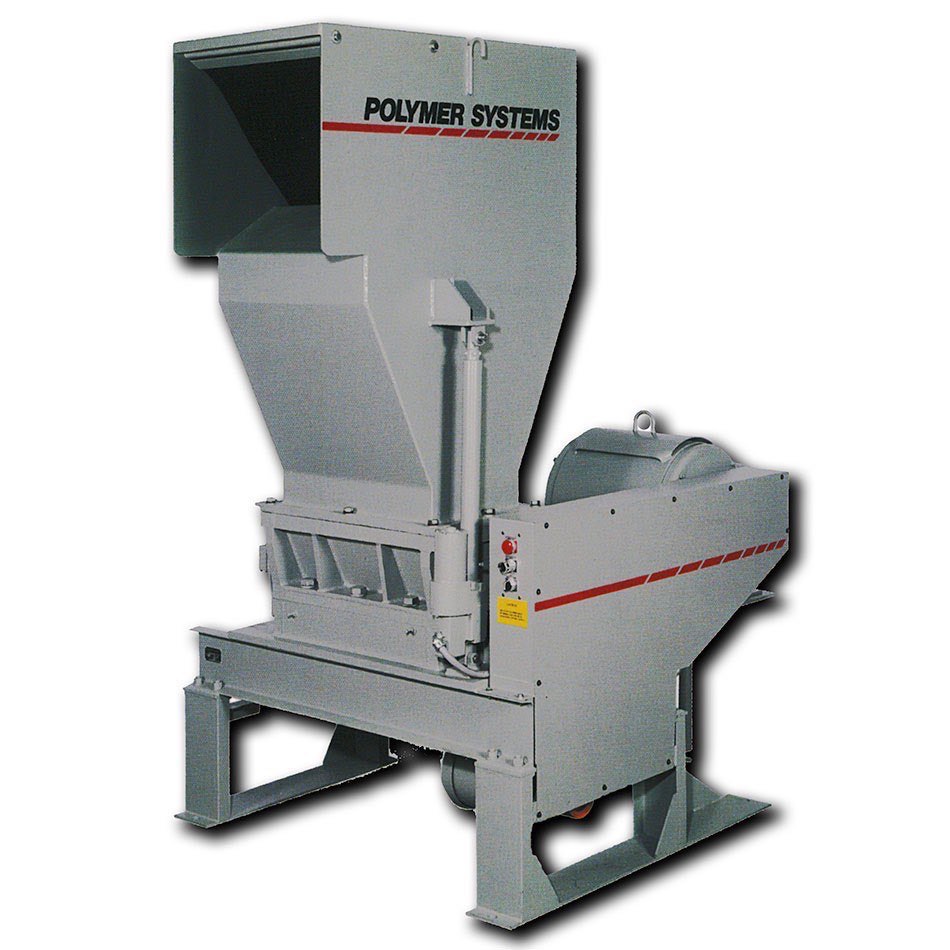

Heavy Duty Granulator

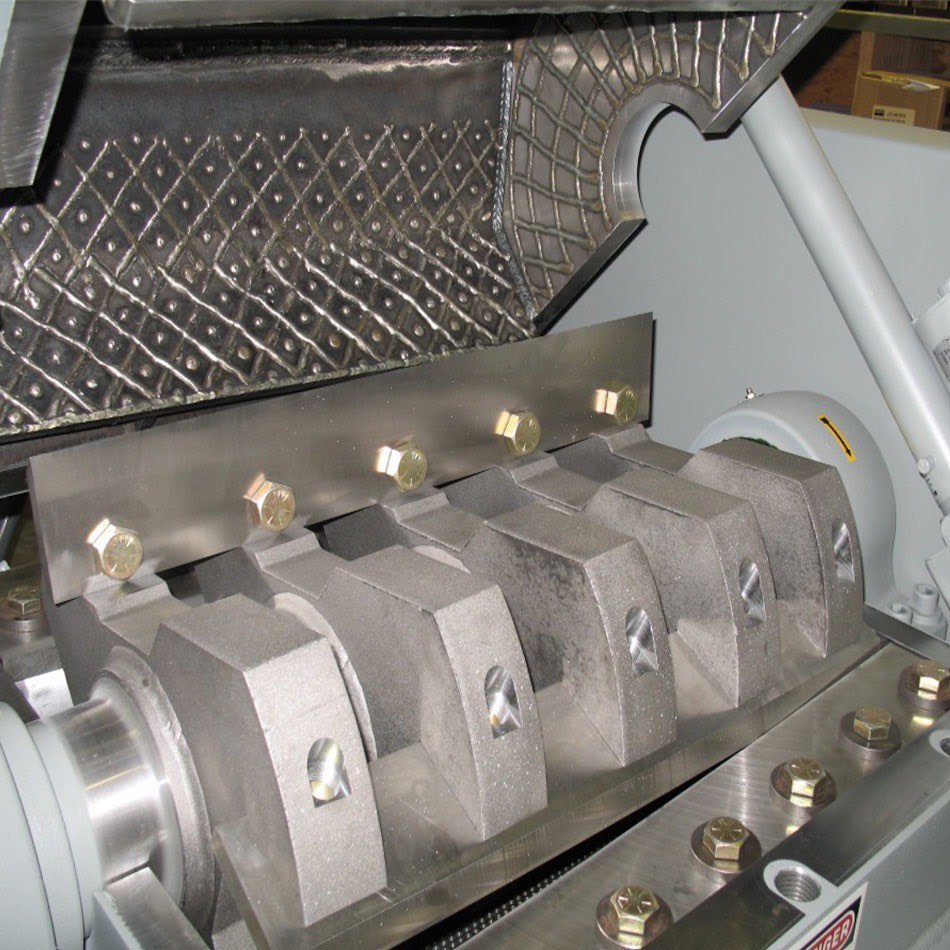

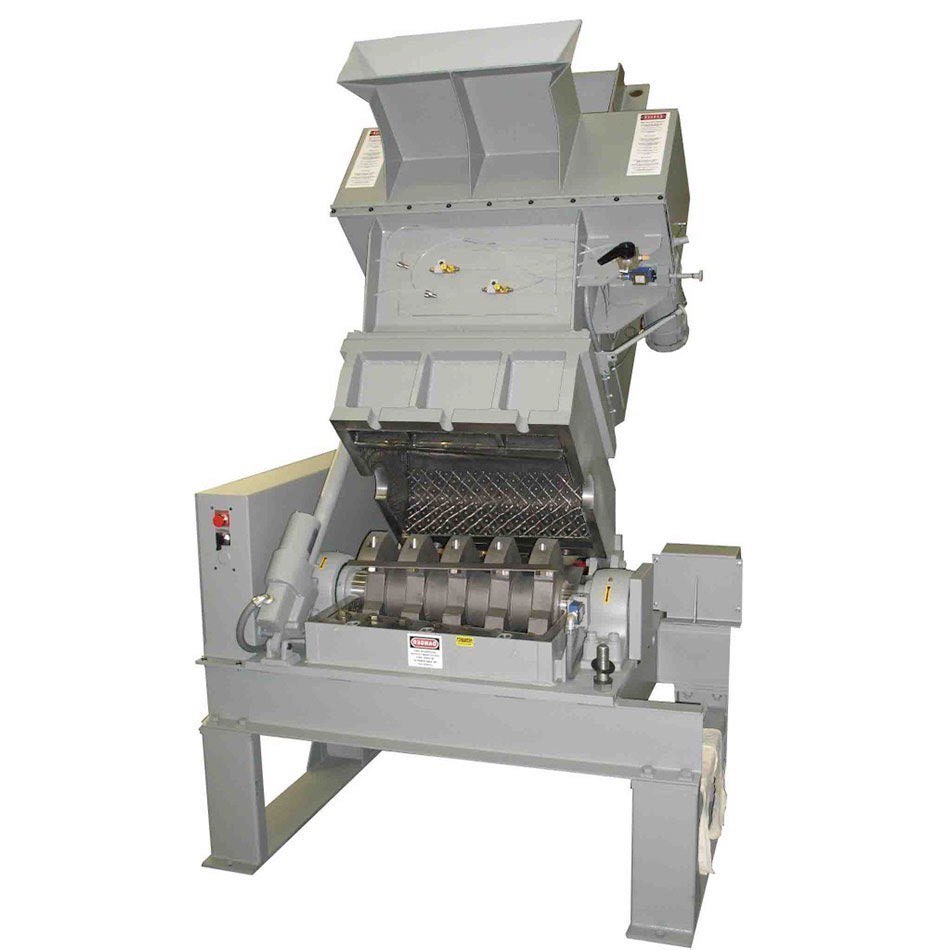

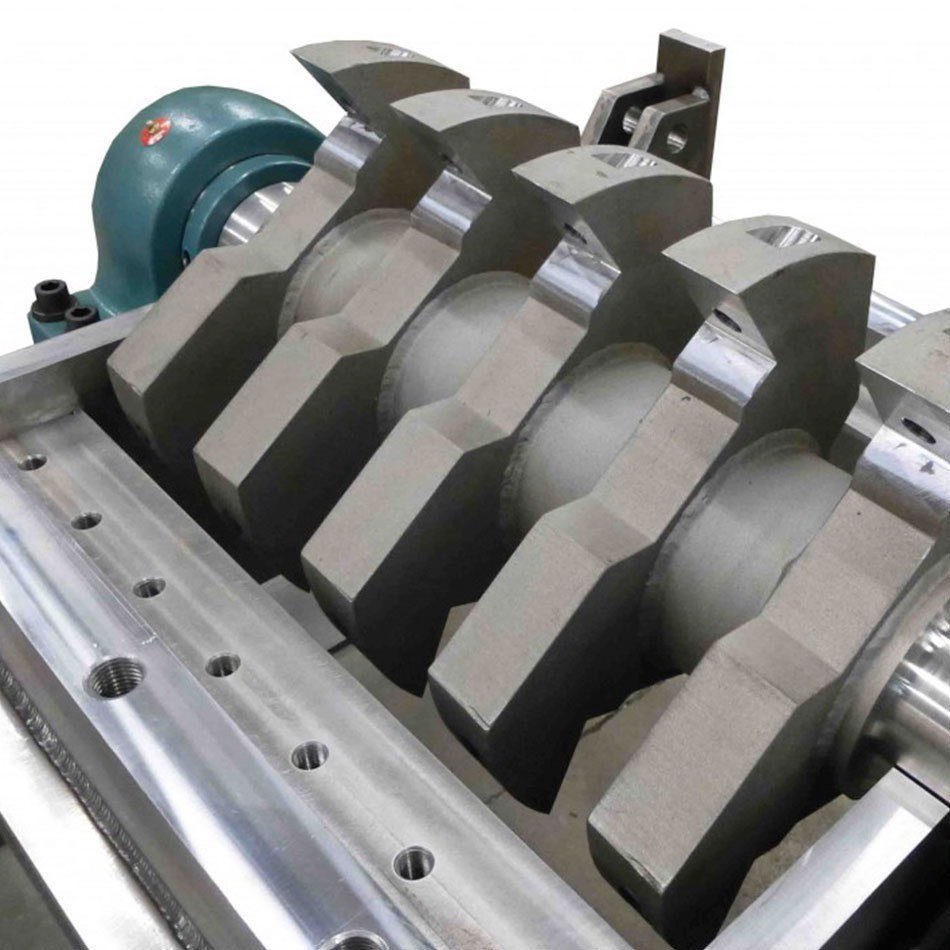

Designed specifically for continuous high volume recovery of the toughest materials, Polymer Systems’ heavy duty machines are precision machined with heavy steel plates and stress relieved weldments throughout. Massive construction of the cutting chamber, rotor and drive assembly provides maximum rigidity, allowing close knife settings without fear of misalignment or machine damage due to shock loads or continuous operation.

Only Polymer Systems’ granulators have a clear, unobstructed feed opening equal to rotor diameter for maximum performance through every inch of the cutting circle. This unique design maximizes granulator capacity, eliminates bottlenecks at the entrance to the cutting chamber and dramatically increases effective screen area for fast throughput. A special sound-deadening composite material is used for hopper walls on all Press Side, Large Part, Shurfeed 2000 and Heavy Duty Polymer granulators.

This unique triple-ply laminate has a thin elastomeric membrane between two sheets of steel, identical to what is used in firewalls of some luxury automobiles. It dramatically reduces noise transmitted through the hopper walls and out the feed opening by dampening the sharp, metallic ringing noise caused by material hitting the inside walls. Double wall designs offer little noise reduction when compared to our triple-ply design.

Resources

Brochure

Tech Info

Video

Specifications

Model 1626 2441
Throat Size at Chamber Inches 16 x 26 24 x 41
Screen Area Sq. Inches 490 1,214
Motor HP 50, 75, 100 100, 150, 200
Cutting Circle Diameter Inches 17.25 24
Rotor Knives Number 3 3
Bed Knives Number 2 2
Throughput Lbs/Hr 2,500 6,000
Weight Lbs 5,700 14,000
Drive V-belt Optional Sheave
Flywheel
Solid
Flywheel

Features & Specifications

  • Rugged, powerful central granulators for heavy moldings, pipes, sheets, films and blow molding scrap
  • Massive & durable rotor shaft and bearings
  • Energy efficient design
  • Double Angle Cut? granulation technology
  • Trouble-free continuous performance
  • High production rates
  • Quality, uniform granulate
  • Available with 50 HP up to 200 HP

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu Copper wire & cables
  • And many other materials
