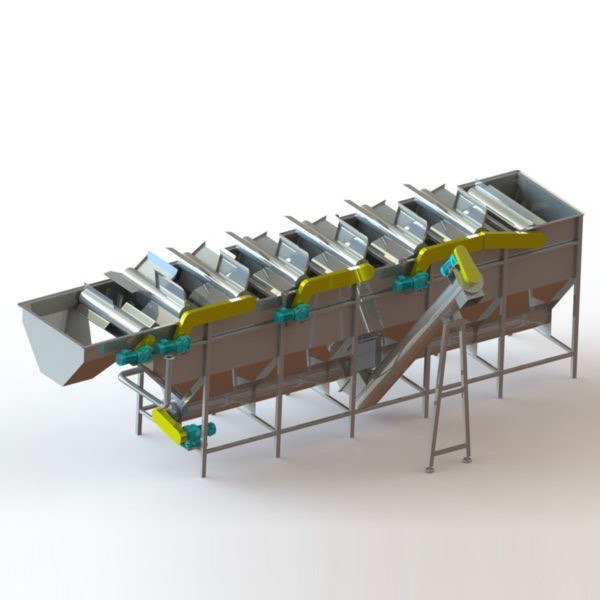

sinkfloattankHDPE_1200x1200

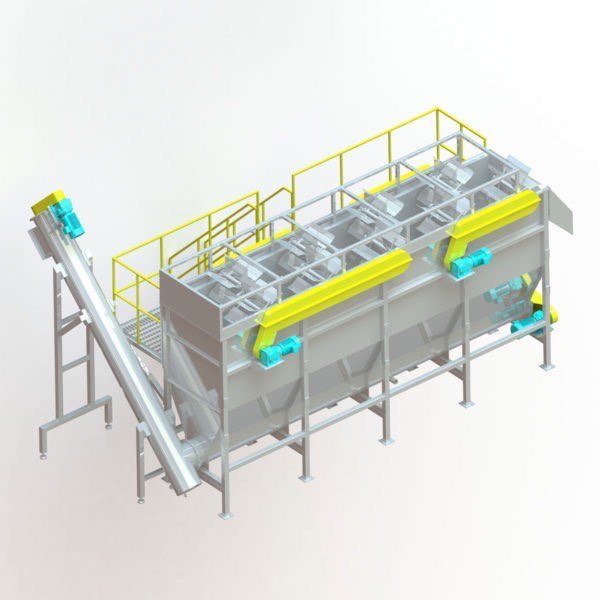

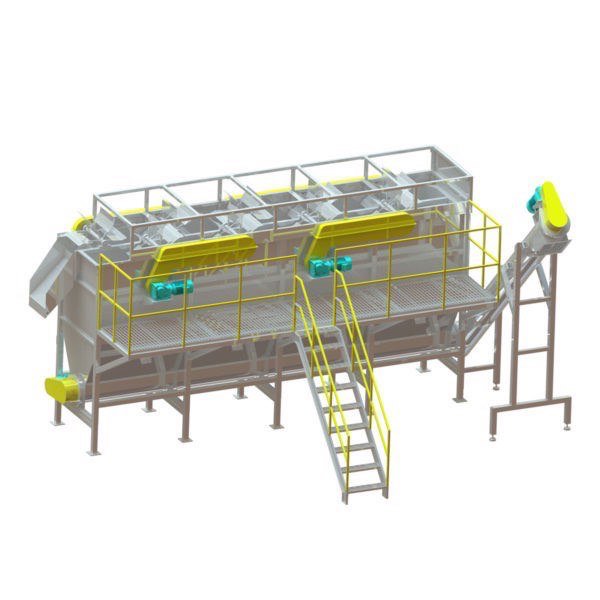

sinkfloattankPET2_1200x1200sinkfloattankPET_1200x1200Sink Float Tank

Sink Float Tank

Our Sink Float Tank is used to separate different materials based on their different specific weights.  This is accomplished by feeding mixed materials into the tank, which is filled water. There are paddle rollers for pressing the materials down into water, mixing the materials fully with water and also moving this mix forward at a slow speed. Then, the floating materials will be transported along the surface of the water by means of the paddle rollers. The materials heavier than water will sink, thus being separated from the floating materials.  The floating stream is discharged off the top of the tank and the sinking materials (heavy fraction) are extracted by a screw conveyor mounted at the bottom of the sink float tank.  It is important to have the proper water depth, conveying speed and length of transport to efficiently separate the materials.  We combine the best of these in the design of our sink float tanks to meet your processing needs and applications.

Specifications

Model PX1500-6 PX2000-9
Standard capacity for HDPE 2T/H 4T/H
Standard capacity for film 500kg/H 1000kg/H
Tank width (mm) 1490mm 1852mm



Model PX1500-6 PX2000-9
L*W*H(A*B*C)(mm*mm*mm) 3450*1700*2000 3752*2306*2730
Motor power (kw) 12.6kw 16.8kw
Tank width (mm) 1490mm 1852mm
Dia. of sinking materials collecting auger ∅300mm ∅400mm
Dia. of sinking materials discharging auger ∅300mm ∅400mm
Inlet height (D) (mm) 2315mm 3838mm
Outlet height (E) (mm) 1558mm 2470mm

Features & Specifications

  • Stainless steel construction
  • At least 1.8m water depth
  • Deep “V” bottom design ensure no sinking flakes accumulate
  • Special screw and trough design at the bottom of the tank ensure low turbulence and collection of sinking flakes
  • Paddle rollers press the materials down into water during processing, mixing materials fully with water
  • Specialized exit paddle roller for discharging the floating materials ensures minimum water discharge
  • Long screw conveyor length to ensure collection of sinking material
  • Strong screw design to ensure long life
  • Mechanical Air-sealing for screw shaft to ensure no water leakage
