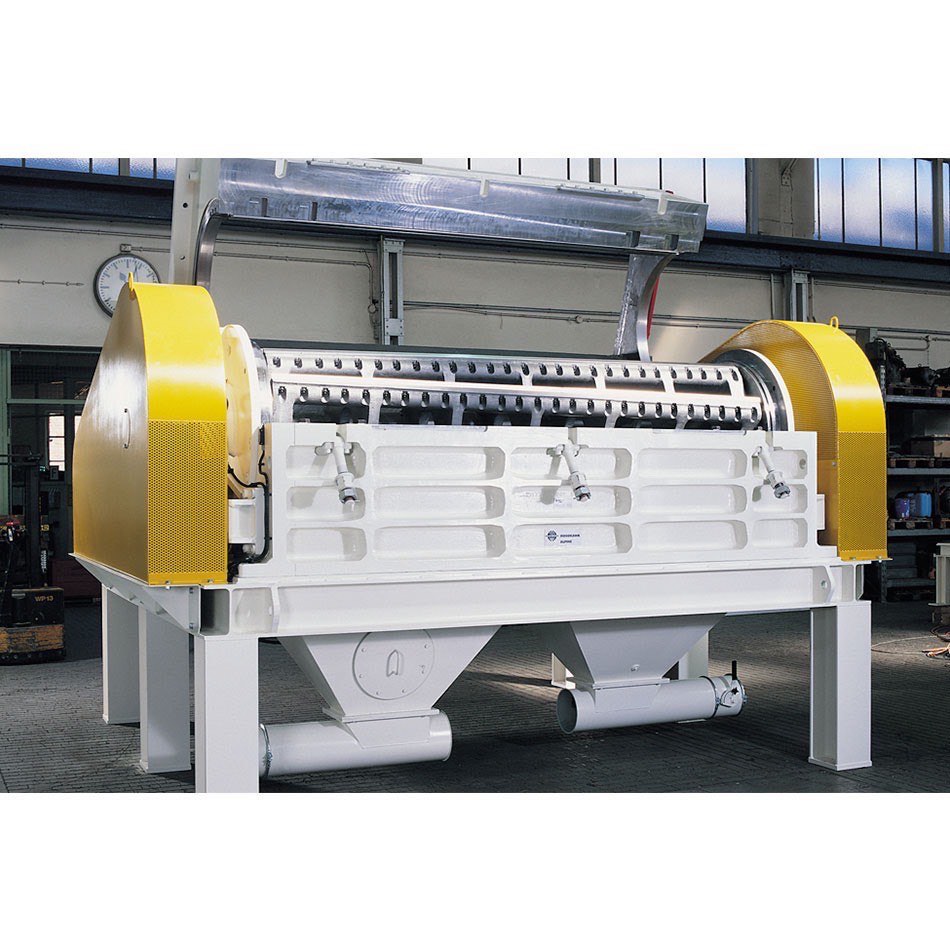

Alpine RO Rotoplex Series Granulator

The Hosokawa Alpine RO Rotoplex Granulator is characterized by performance capacity, economy, and operating reliability. High-grade spheroidal graphite cast iron ensures that even in continuous heavy-duty operation, the Rotoplex granulators do their job reliably over many years.

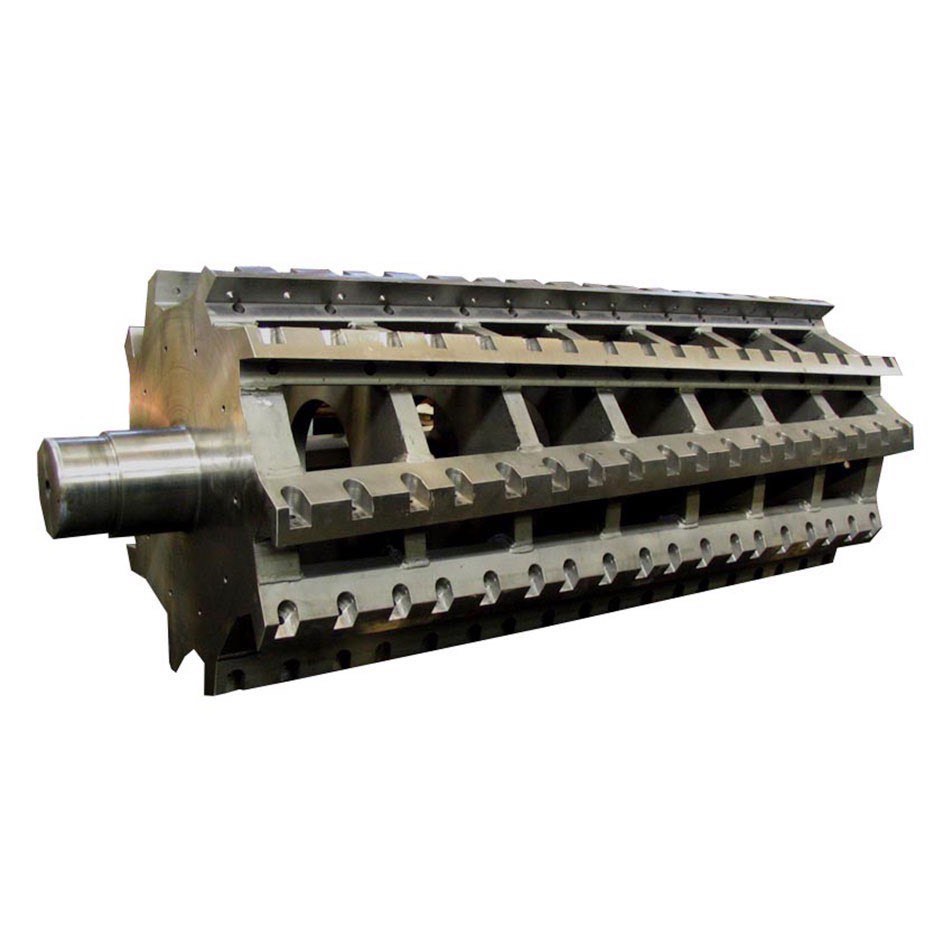

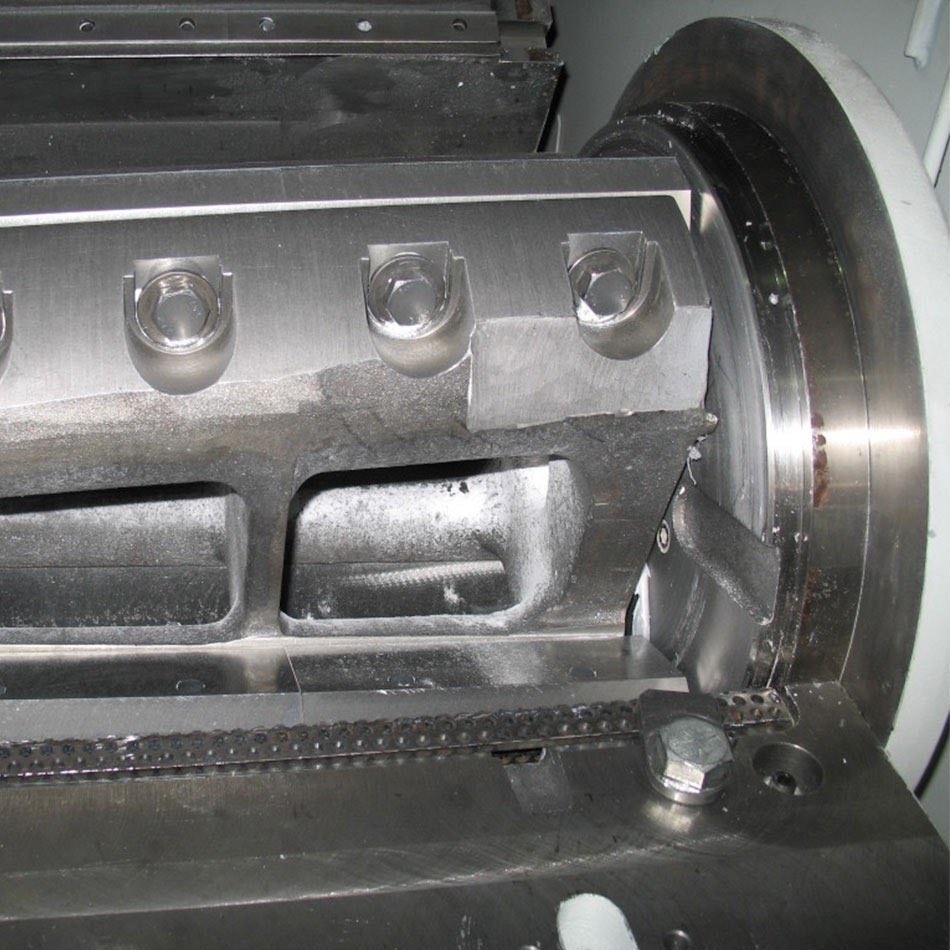

The Rotoplex features a cross-scissor-cut rotor which offers process technological superiority, saves energy, increases the service life, and improves the material feeding characteristics. These machines are capable of extremely high capacities due to our unique design and multiple knife geometry. Besides the classic field of plastics size reduction, Rotoplex large scale granulators are exemplary for fiber, film, purgings, wire and cable and many more difficult materials.

Resources

Brochure

Tech Info

Specifications

Model 40 / 63 50 / 80 63 / 100 80 / 160 125 / 125
Drive Standard HP 50 75 100 200 250
Throughput Lbs/Hr 1,100 2,200 3,300 6,500 11,000
Rotor Speed RPM 660 550 525 350 250
Rotor Knives Number 4 5 6 8 12
Bed Knives Number 3 4 5 6 9
Weight Lbs 5,600 6,800 14,000 24,800 28,000

Features & Specifications

  • Rotor and machine housing in fracture-resistant cast iron

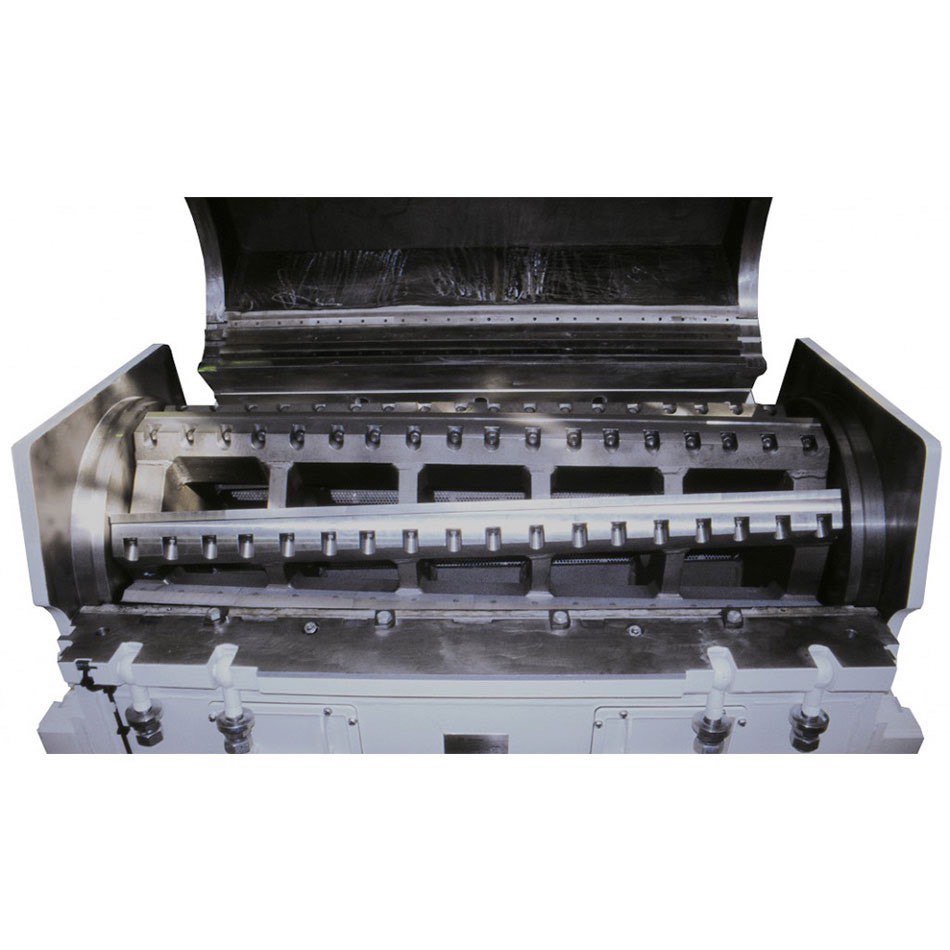

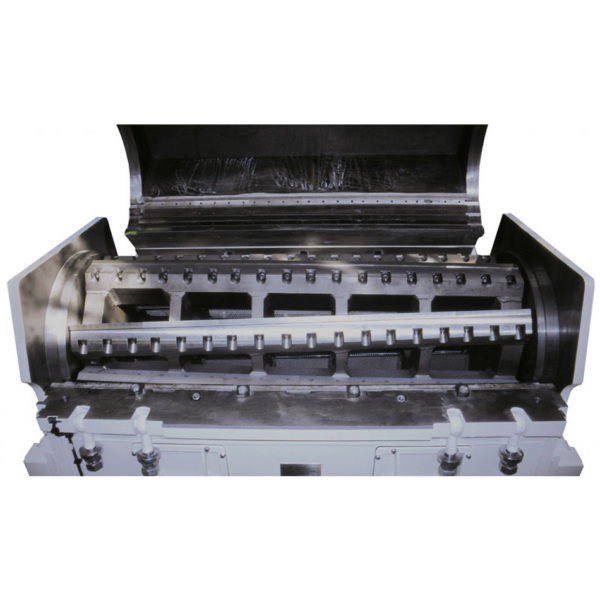

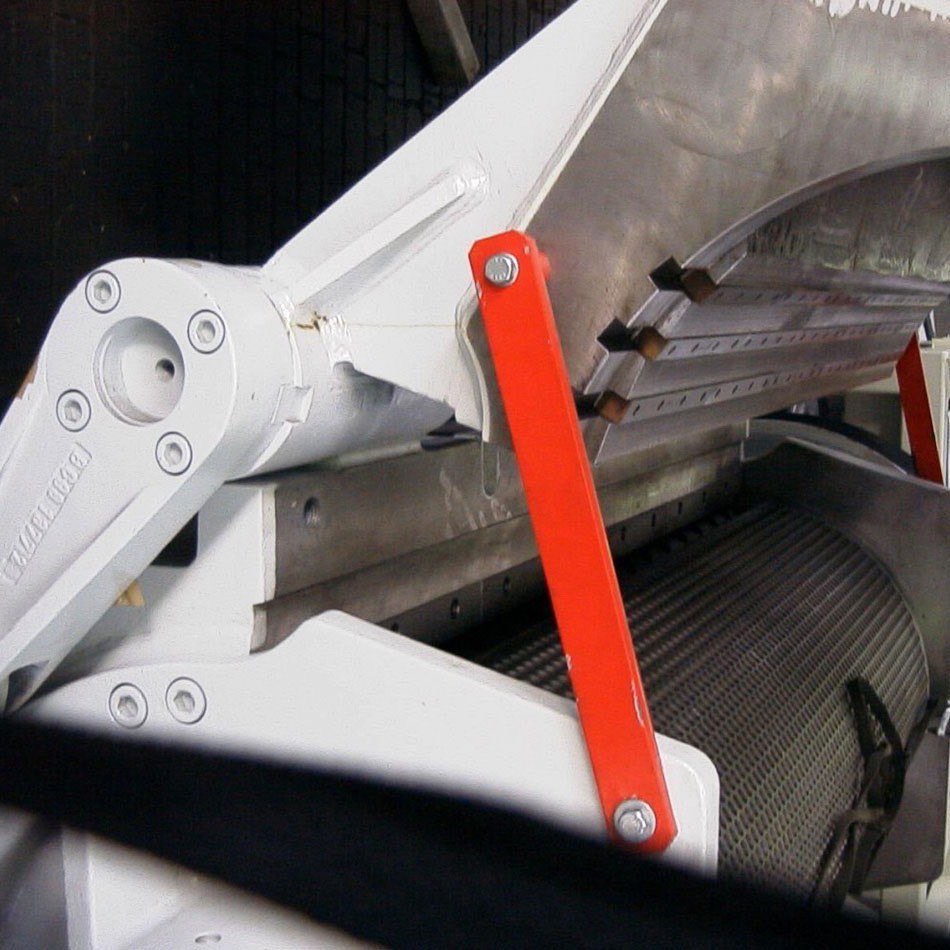

  • Removable cover, cutting chamber easily accessible for cleaning
  • Patented Cross-Scissor Cut technology
  • Knife adjustment made from outside machine
  • Constant cutting circle
  • Stator knives can be used on 4 sides
  • Open rotor directly mounted to the reinforced motor shaft
  • Energy efficient design
  • Also available in stainless steel

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu ? Copper wire & cables
  • And many other materials
