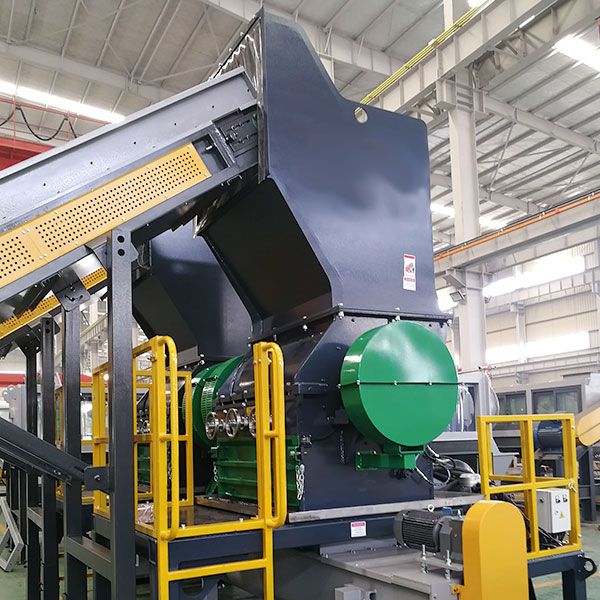

DGF Wet and Dry Granulator

Hosokawa Polymer Systems has a new line of WET and DRY granulators ideal for high capacity washing line size reduction as well as standard dry recycling granulating. Our DGF series is specially designed for washing lines with wet granulation systems for both film and bottles. These granulators come standard with tangential feed (ideal for bottles), heavy-duty rotor (Chevron or Staggered) and dual flywheels. Multiple rotor designs can be used for specific applications to maximize capacity. This series is reliable, durable and cost-effective.

Resources

Specifications

Item Unit DGF 500/700 DGF 700/1000 DGF 700/1200 DGF 800/1600
Rotor Diameter mm Φ500 Φ700 Φ700 Φ800
Rotor Width mm 700 1000 1160 1560
Rotor Knives pcs 5*2 5*2/7*2 5*2/7*2 5*2/7*2
Stator Knives rows 2 2 2 2
Cutting Chamber Dimensions mm 500*700 700*1000 700*1176 800*1600
Motor Power kw 37-55KW 75KW 90KW 160KW
Capacity ton/hr 0.3-0.5 0.6-1 1.5-2 2.5-3
