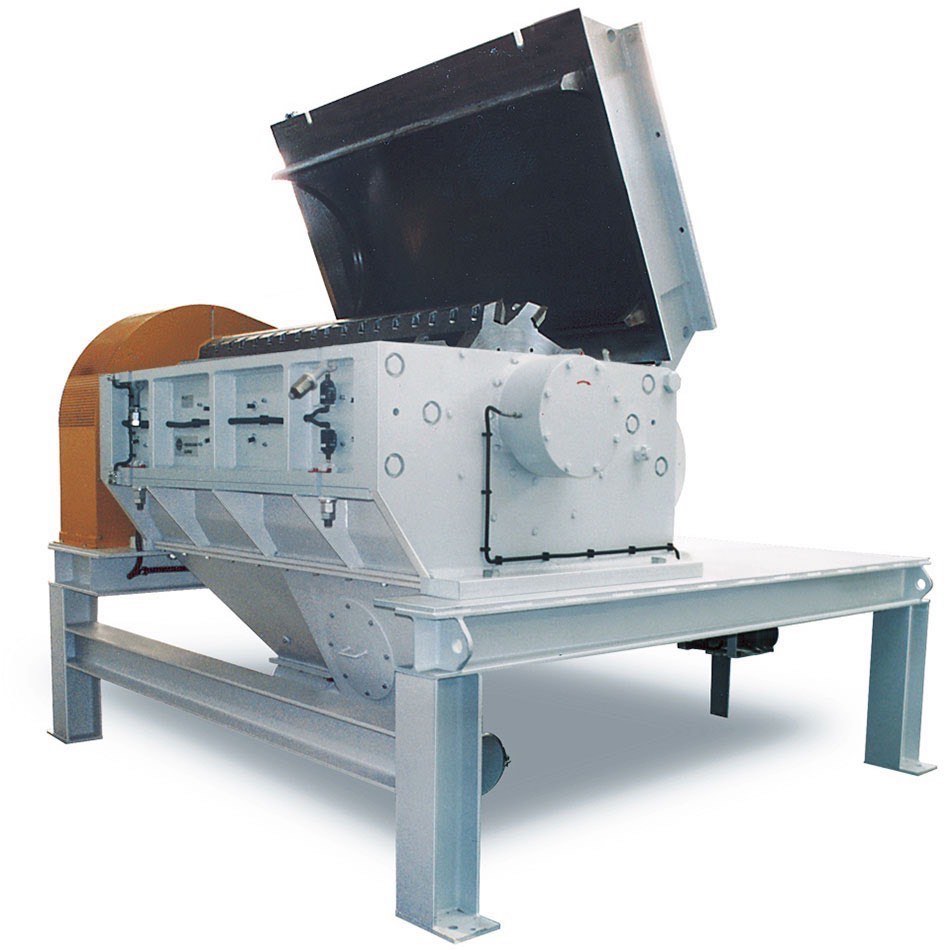

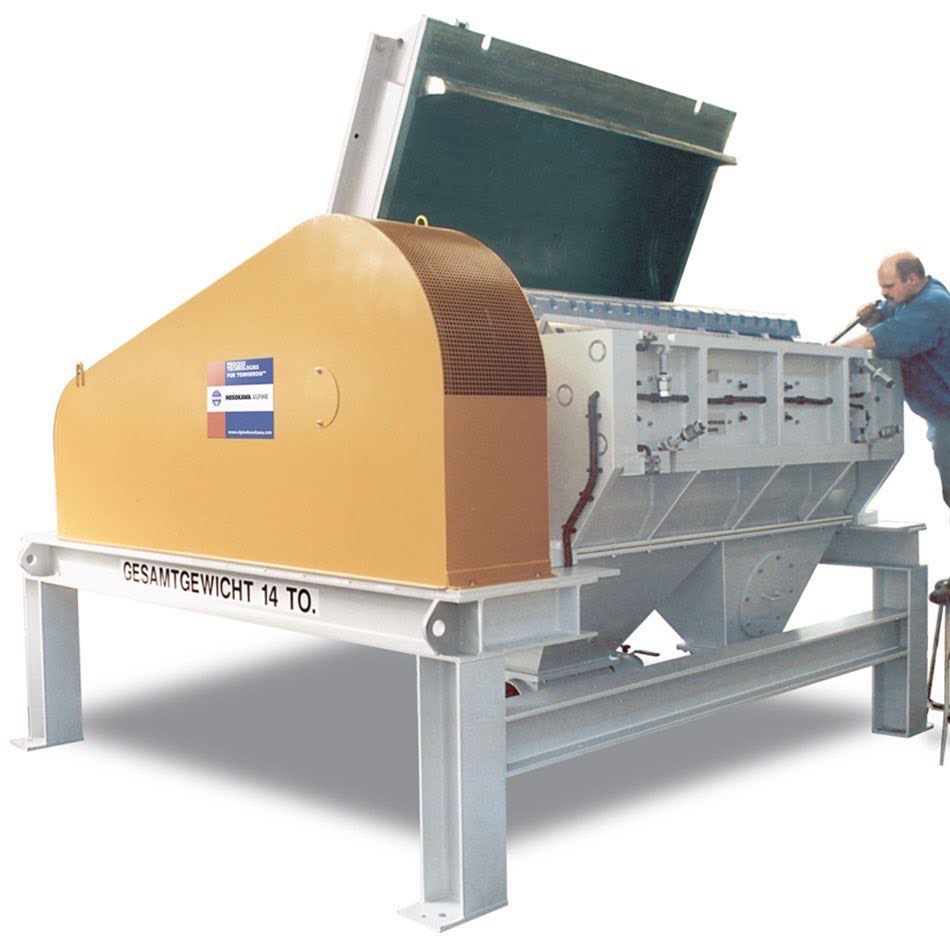

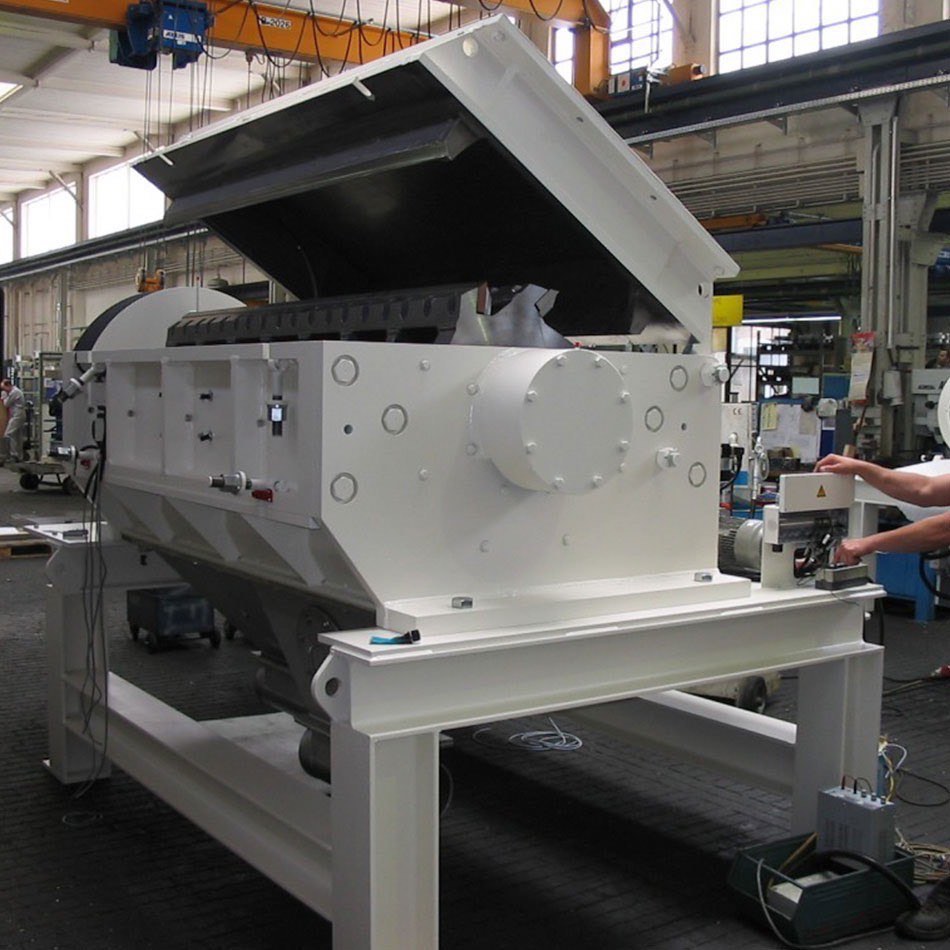

Alpine CL Series Granulator

This product line is absolutely ideal for the comminution of all kinds of plastics, film and other cuttable products. It is characterized by a modern and user-oriented machine design as the starting point for custom-designed complete systems.

As a standard feature, Alpine compact line granulators CL offer all the integrated technology that is necessary these days for the cost-effective comminution of all kinds of plastics – and at an attractive price. Developed as a universal granulator, the success of this product line is based on the many details aimed at maximum user benefits. Alpine cross-scissor-cut rotor guarantees optimum material intake and distribution and thus high throughput rates at reduced energy consumption.

Resources

Brochure

Tech Info

Specifications

Model 45 / 100 CL 60 / 140 CL 80 / 170 CL 90 / 200 CL
Throat Size at Chamber Inches 18 x 40 24 x 55 32 x 67 36 x 79
Throughput Lbs/Hr 1,000 3,000 5,000 8,000
Motor HP 60-100 100-150 150-200 350-400
Cutting Circle Diameter Inches 18 24 32 36
Bed Knives Number 4 / 2 6 / 2 8 / 2 10 / 3
Weight Lbs 12,500 16,000 20,800 24,000

Features & Specifications

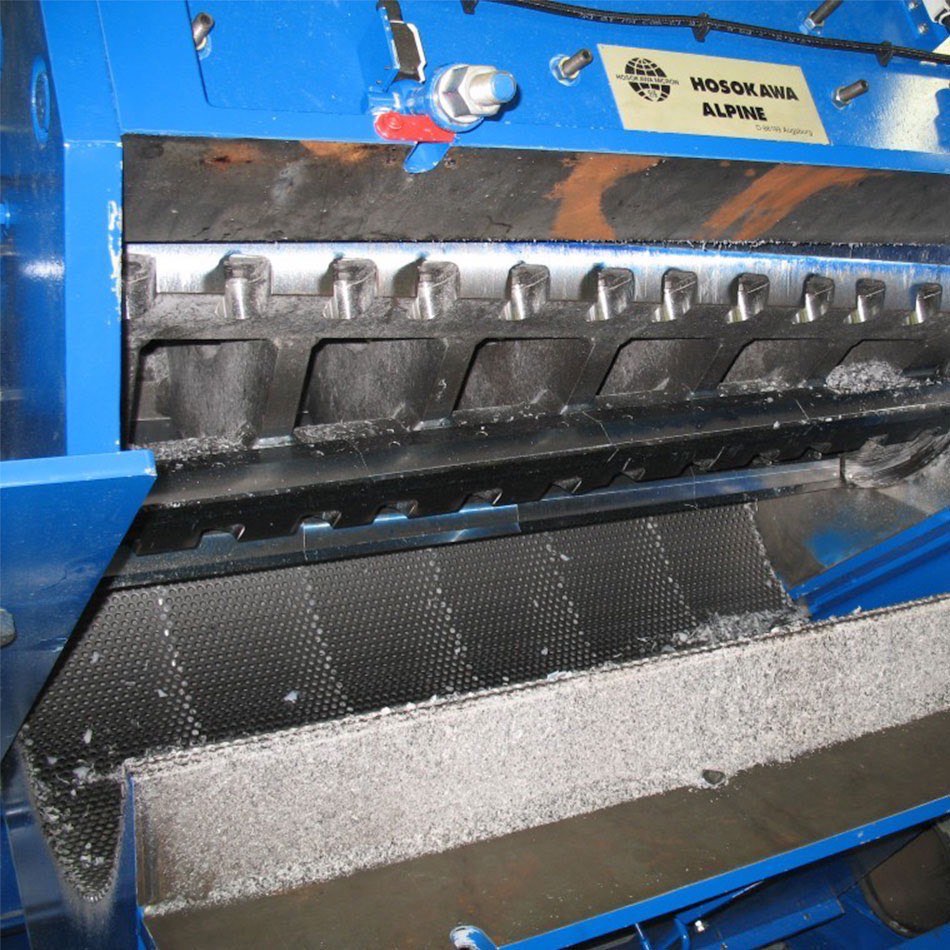

  • Patented Cross-Scissor Cut rotor saves 20% energy, increases the performance, and makes for smoother running.

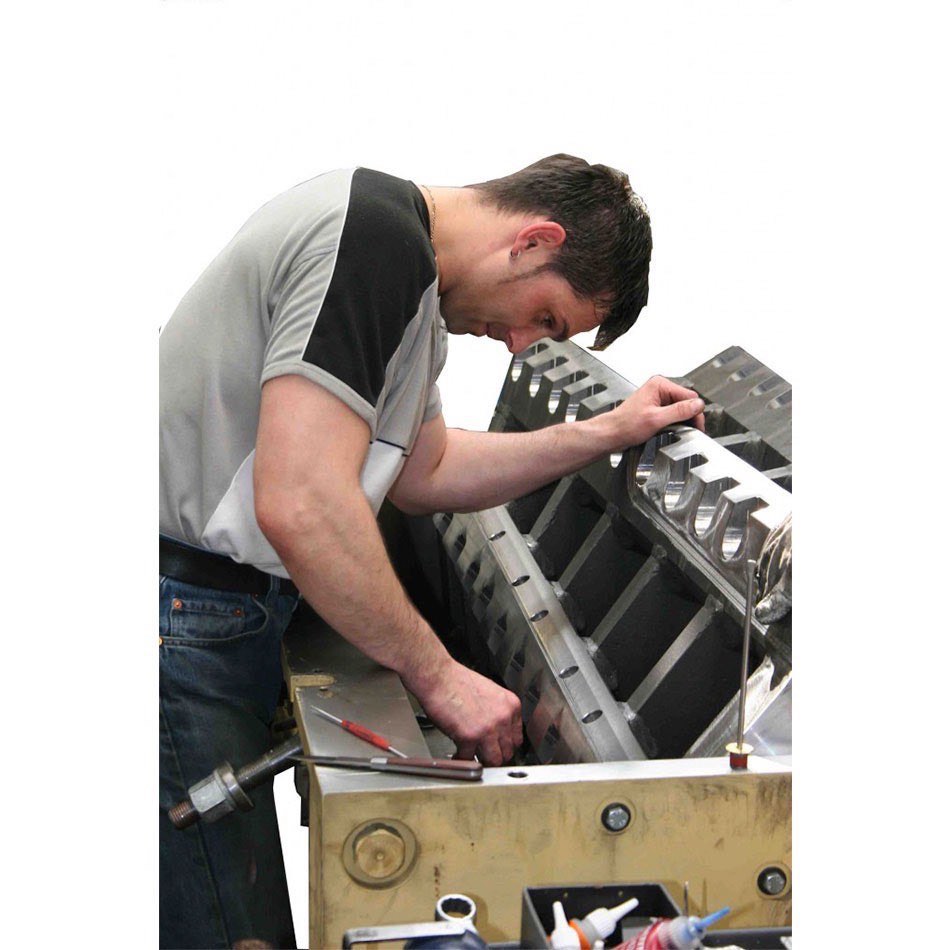

  • With the external adjustment fixture, the segmented rotor knives can be adjusted ready-for-installation outside the machine.
  • Constant cutting circle
  • Open rotor design for optimal air cooling
  • Wear protected hoppers & chambers
  • Robust framework construction
  • Optimal accessibility for quick and easy cleaning
  • Hydraulic opening of screen cradle and hopper

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu Copper wire & cables
  • And many other materials
