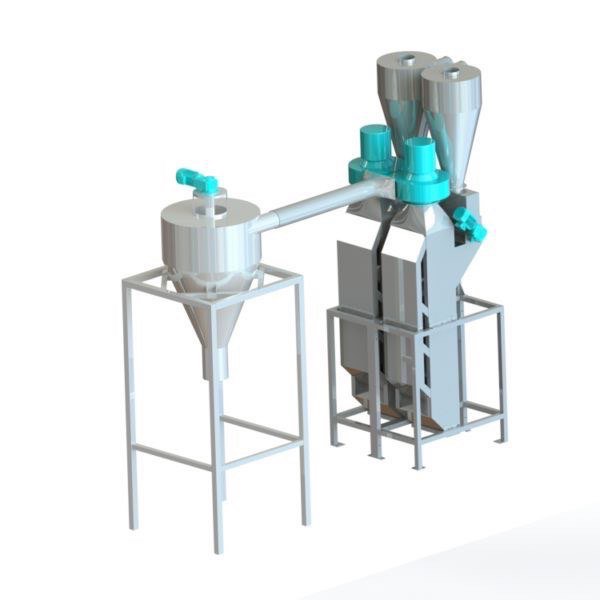

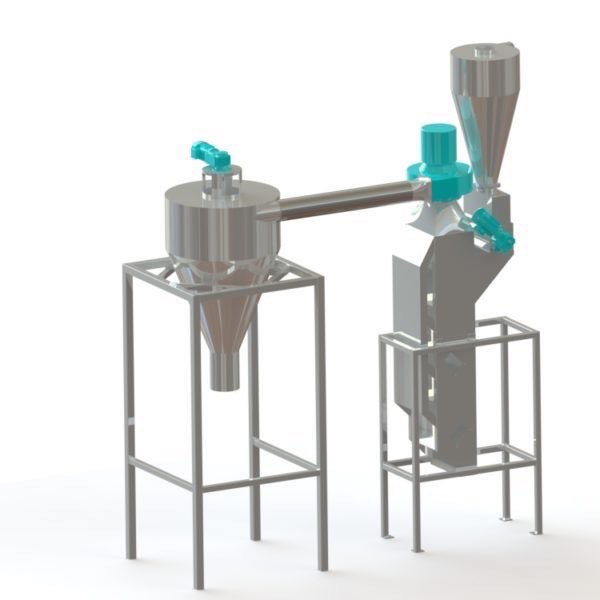

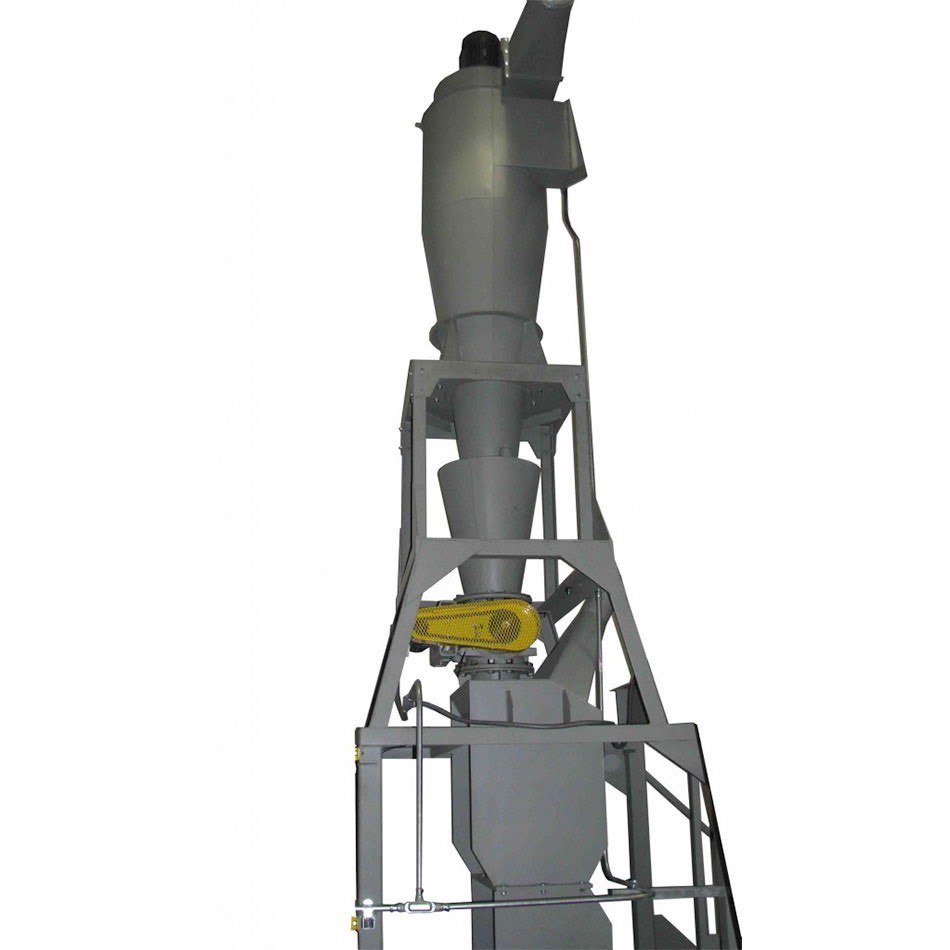

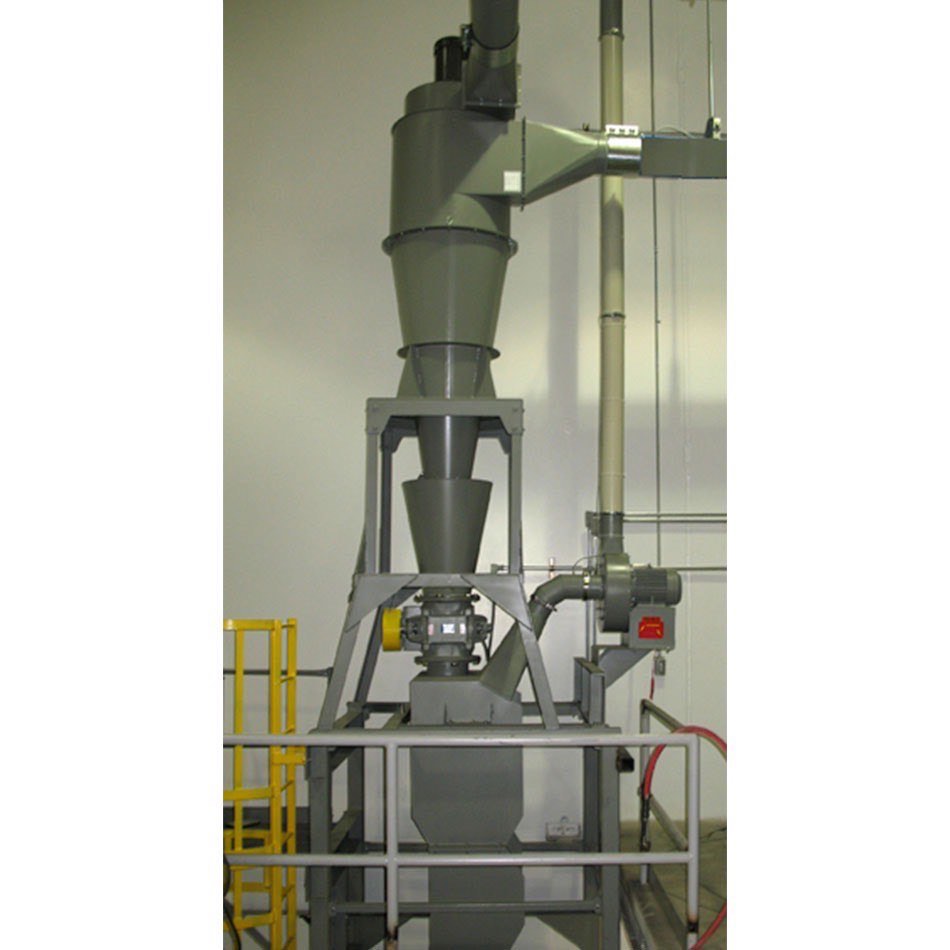

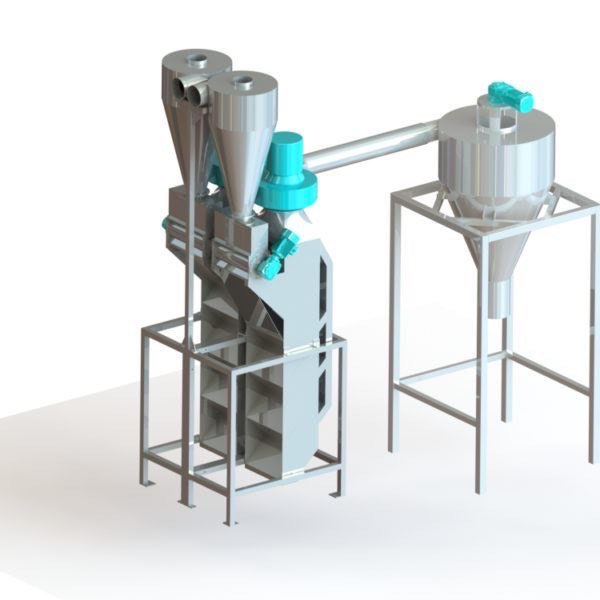

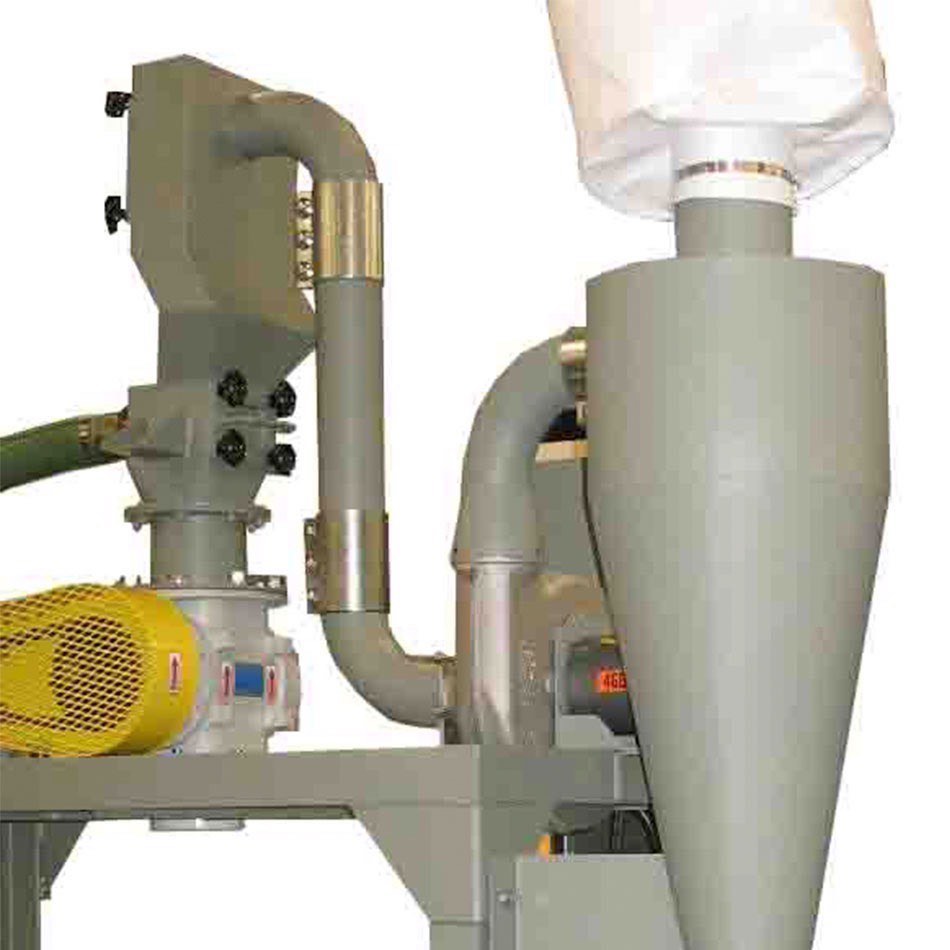

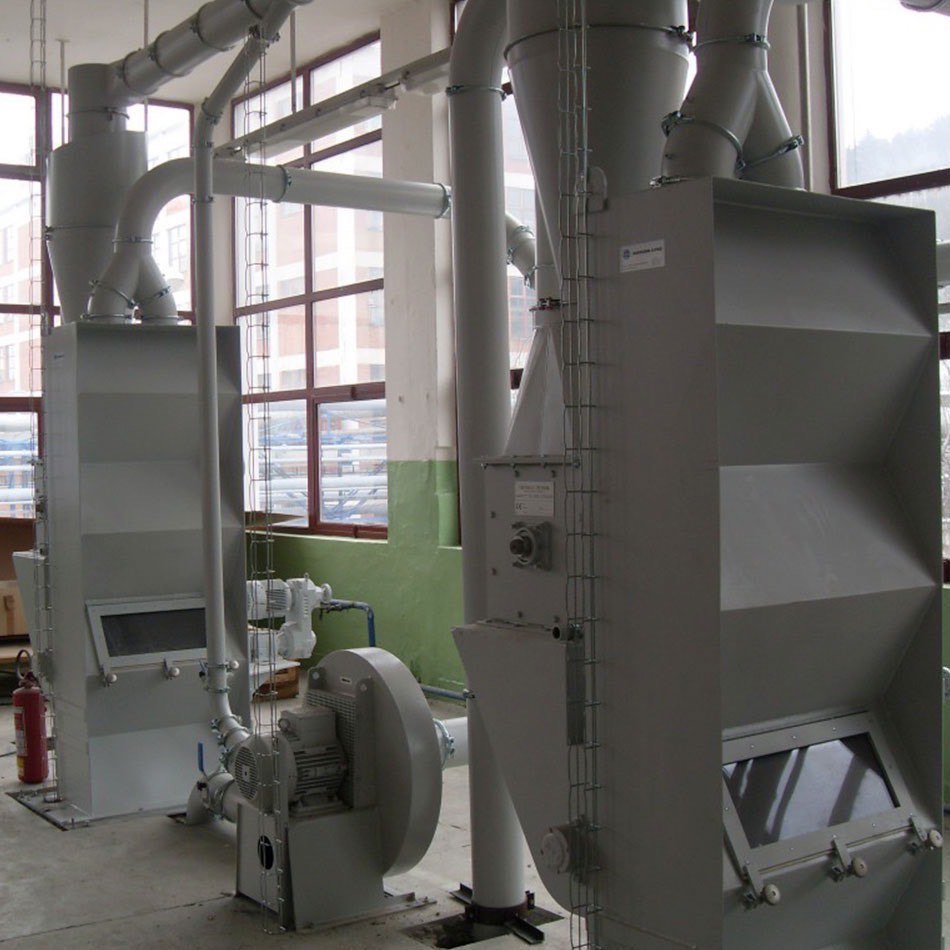

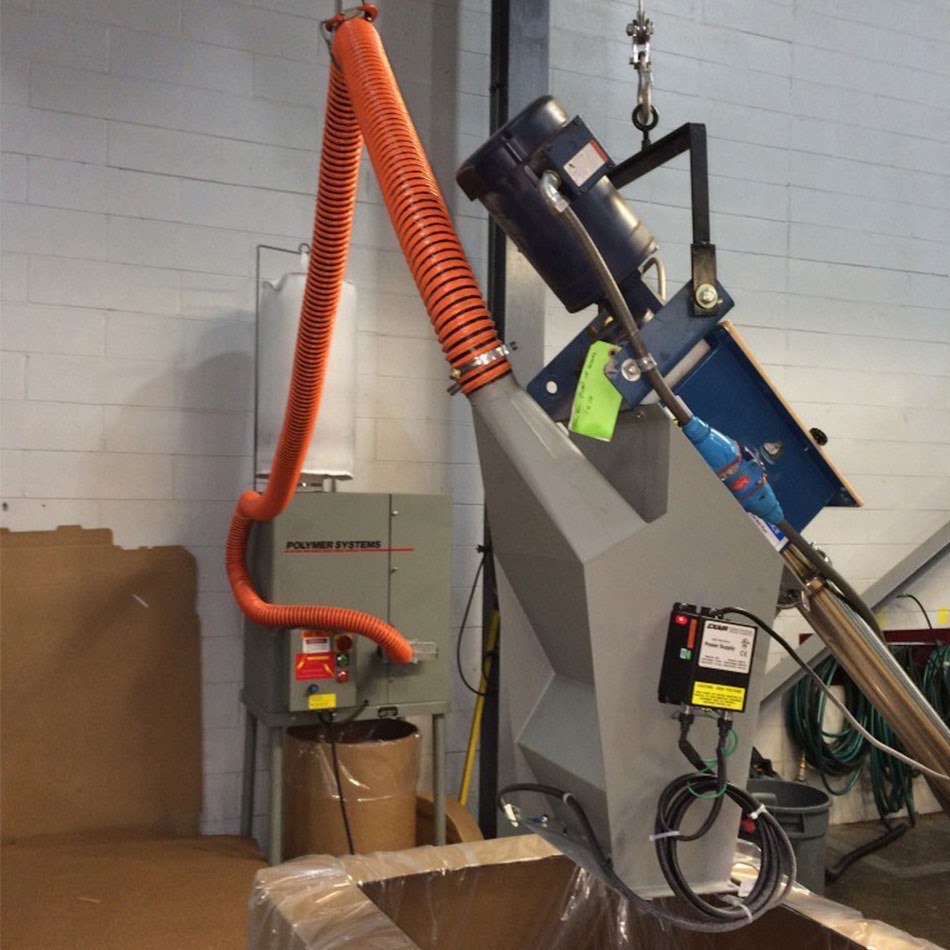

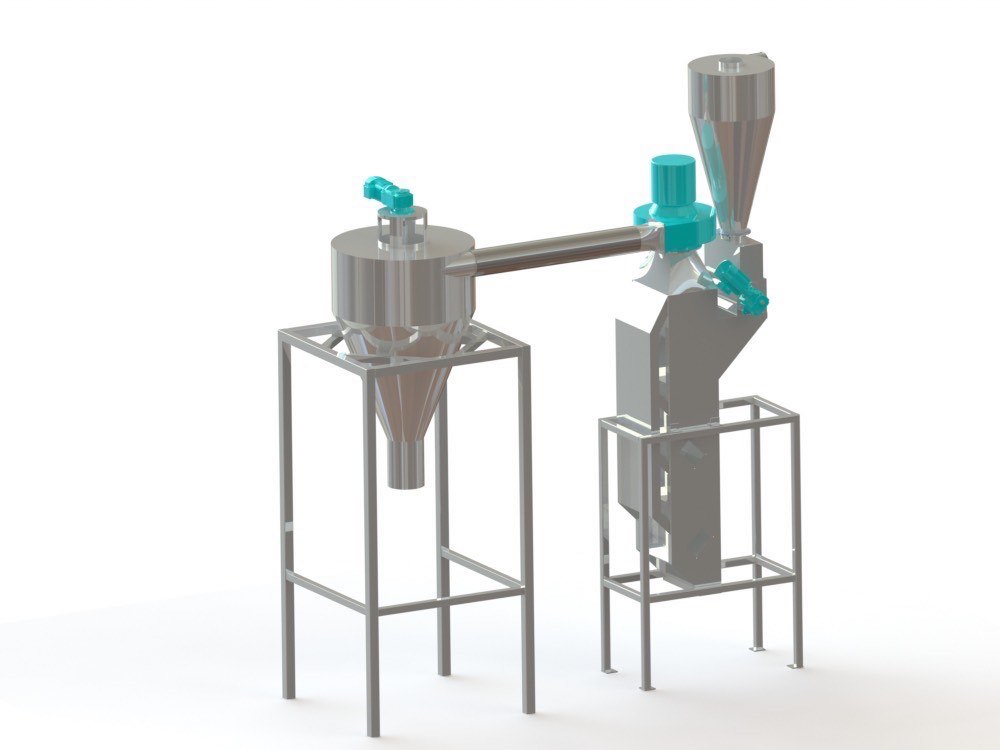

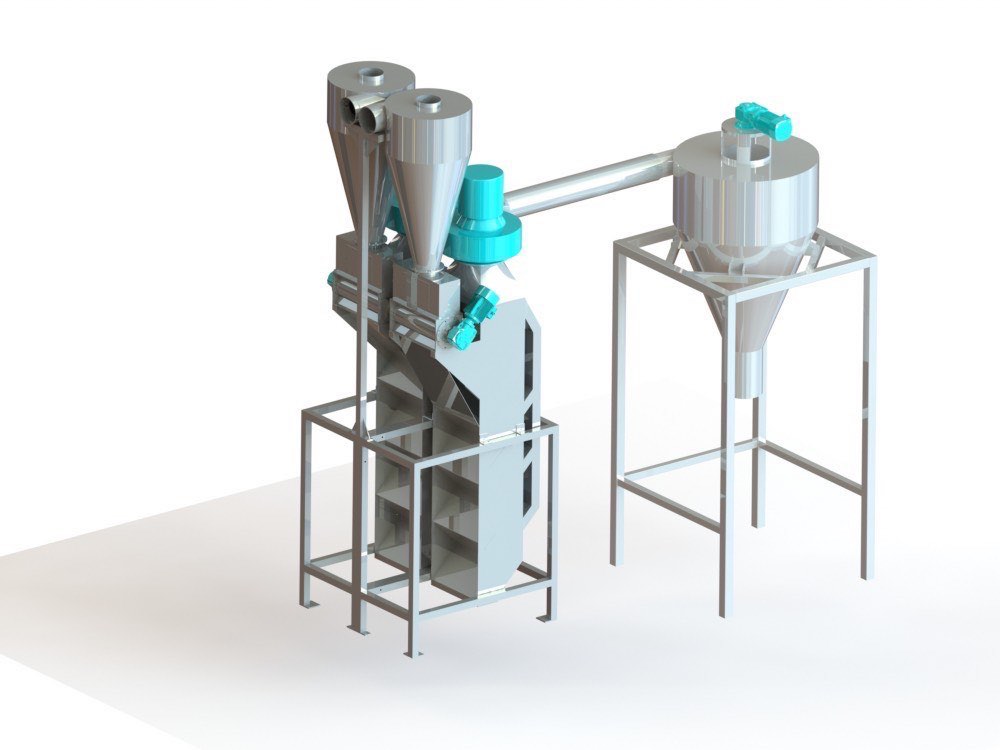

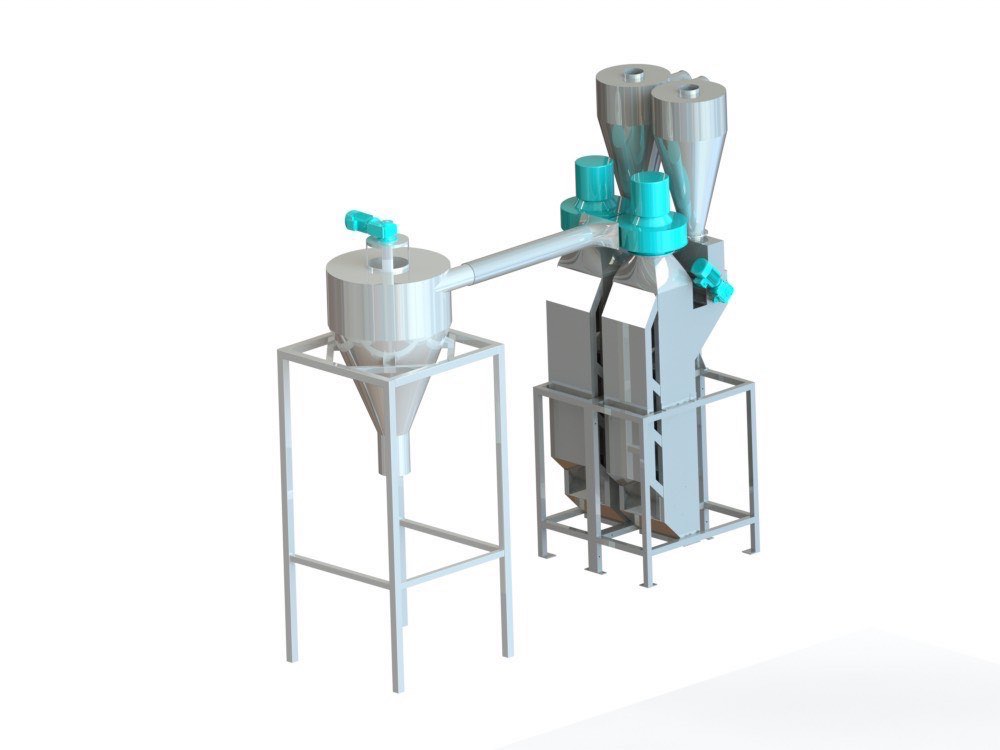

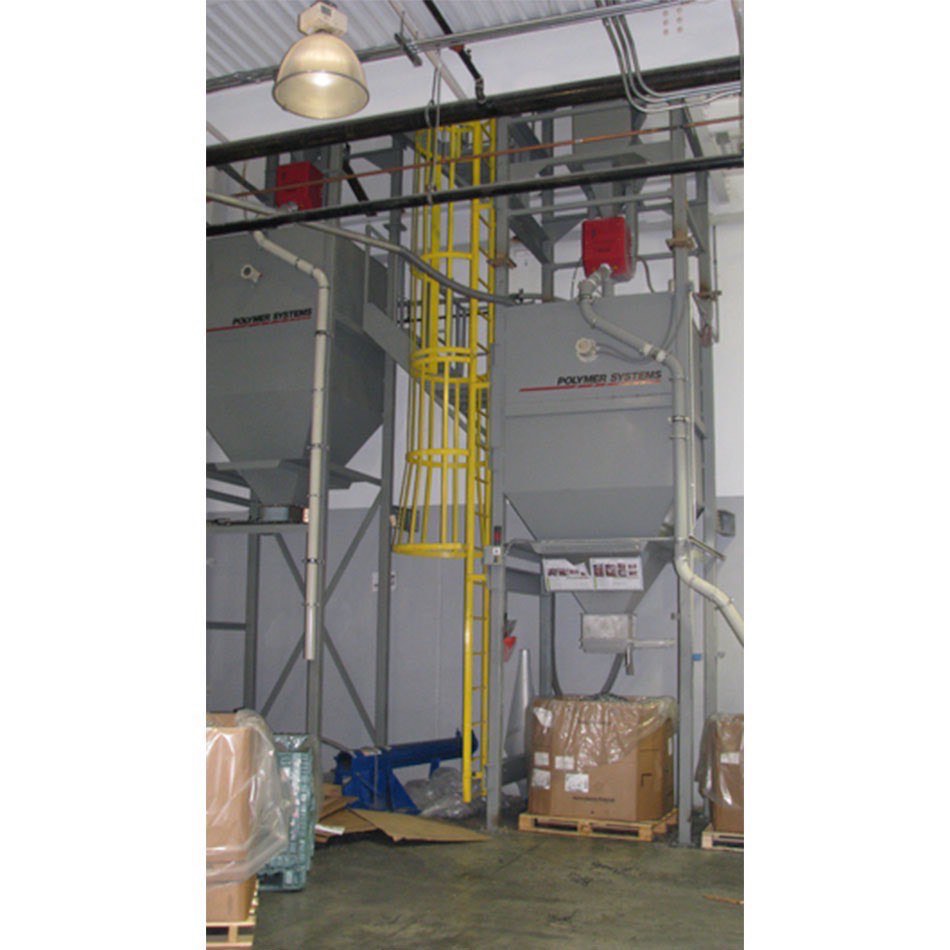

Dedusting System

Whether you are using virgin pellets or granulated regrind, dust, fines and contamination can adversely affect your processing and cause rejections. Maybe you need to remove fibers, paper, or other materials from your product. In either case our customized dedusting systems ensure a clean and useful product.

Often used in line with granulators, our dedusting systems have ranged from 50 PPH to 10,000 PPH. We have experience in dust/fines removal, reinforcing fiber removal, PET bottle paper separation and a variety of other applications. We have retrofit many existing granulator systems with our unique dedusting systems resulting in less down time, reduced rejects and ultimately in large savings to our customers.

Resource

Video

Specifications

Specifications – KS SERIES
Model I II III IV
Capacity Lbs/Hr 500 1,000 2,000 4,000
Max Load % finess 10% 10% 10% 10%
Construction Material Steel or SS Steel or SS Steel or SS Steel or SS
Weight Lbs 250 300 500 700
Blower HP 2 3 5 7.5
Specifications – KSS SERIES
Model I II III IV
Capacity Lbs/Hr 750 1,500 2,500 5,000
Max Load % finess 20% 20% 20% 20%
Construction Material Steel or SS Steel or SS Steel or SS Steel or SS
Weight Lbs 300 400 600 800
Blower HP 2 3 5 7.5
Specifications – DE SERIES
Model I II III IV
Capacity Lbs/Hr 500 1,000 2,000 4,000
Max Load % finess 10% 10% 10% 10%
Construction Material Steel or SS Steel or SS Steel or SS Steel or SS
Weight Lbs 400 750 1,000 1,200
Blower HP 5 10 15 20

Features & Specifications

  • Quick & Accurate dust separation
  • Easy to clean
  • Dust removal down to parts-per-million
  • Contamination, labels, angel hair removal
  • Fast & simple cut point adjustment
  • Even flow material distribution
  • Static elimination
  • Decrease your reject part rate
  • Increase material value
  • Reduce material handling maintenance
  • Easily retrofit to existing systems

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu ? Copper wire & cables
  • And many other materials
