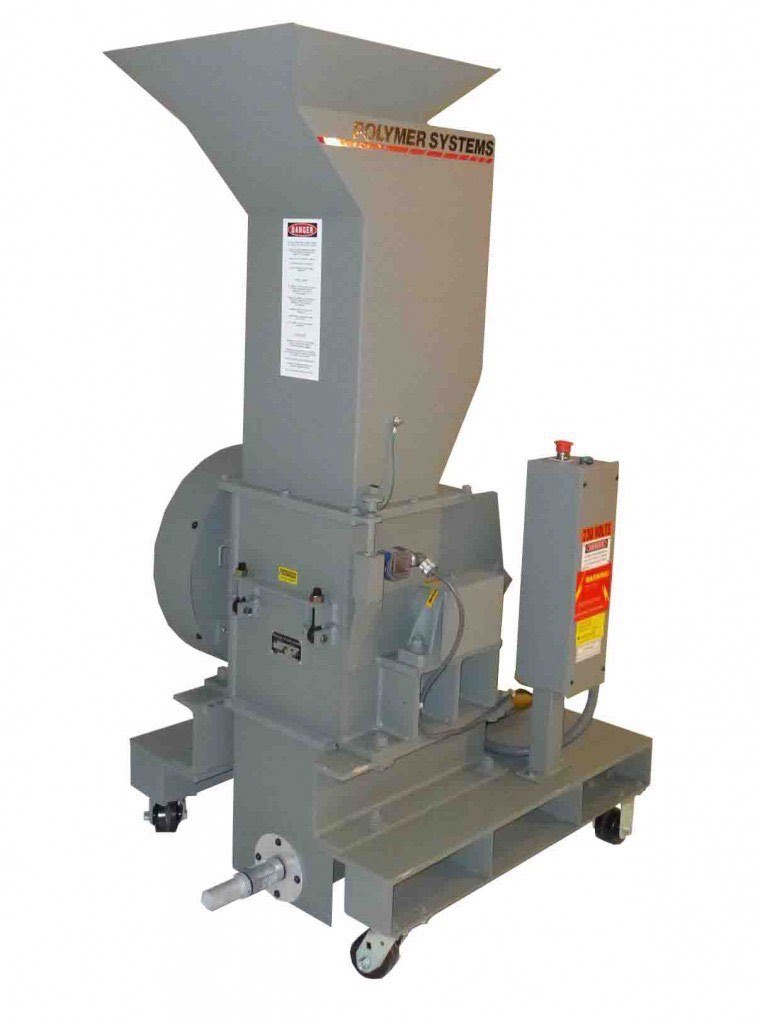

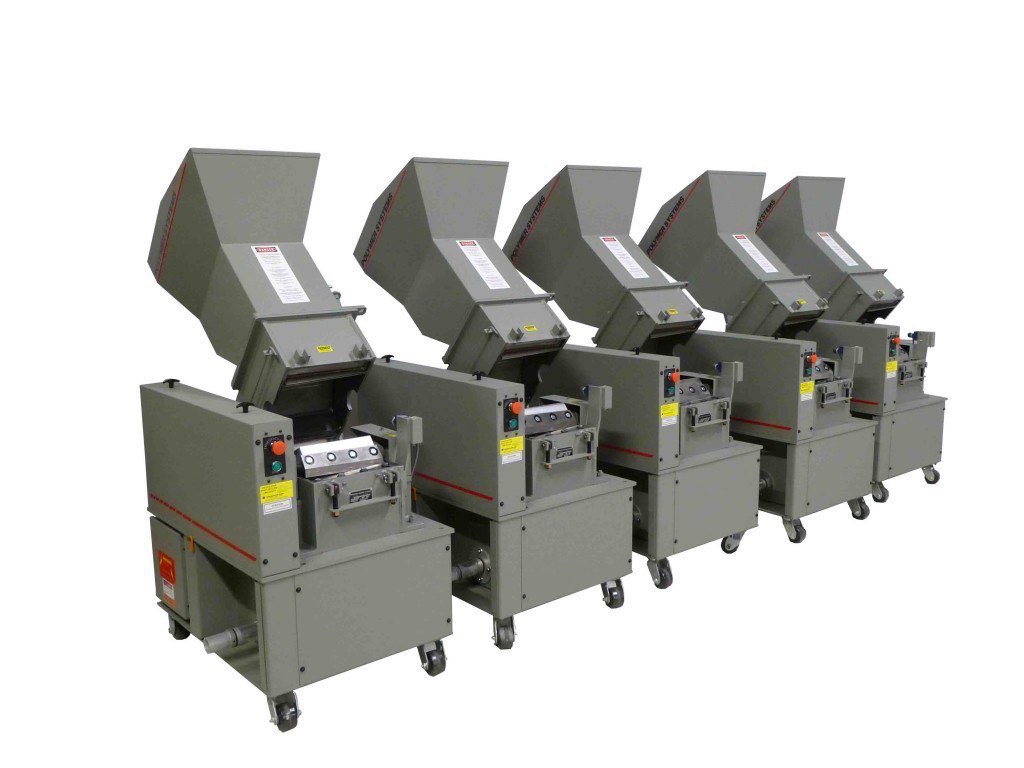

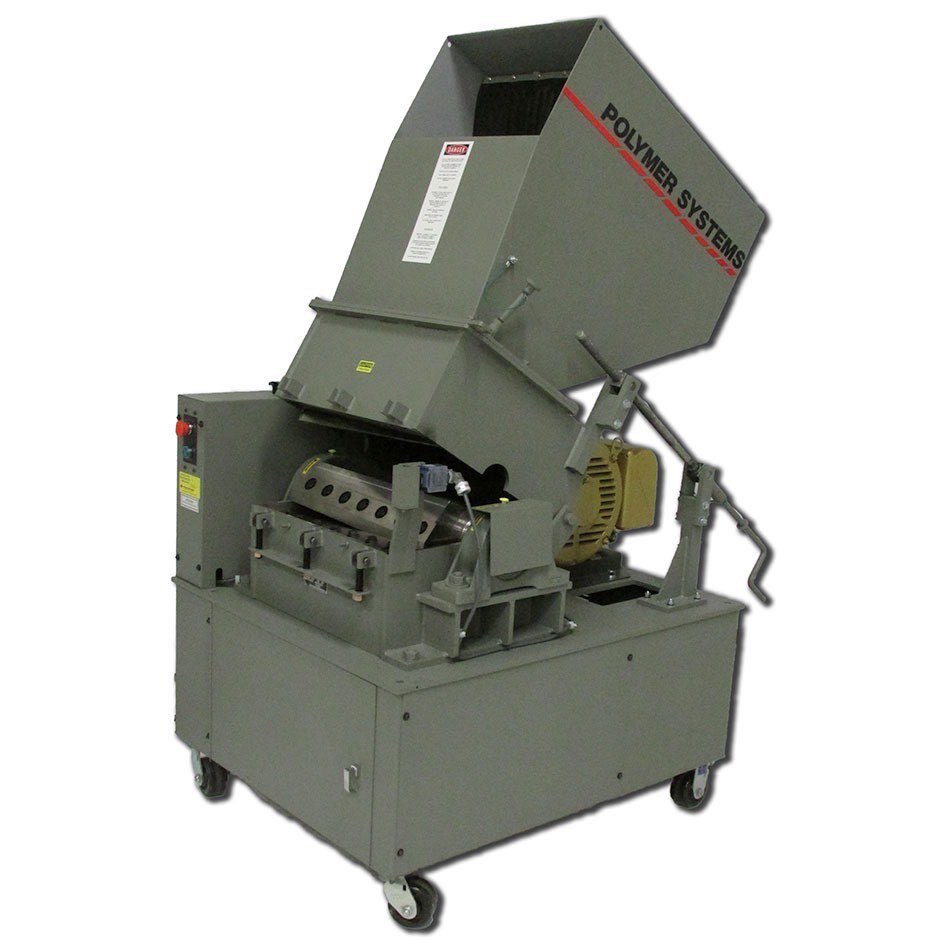

Press Side Granulator

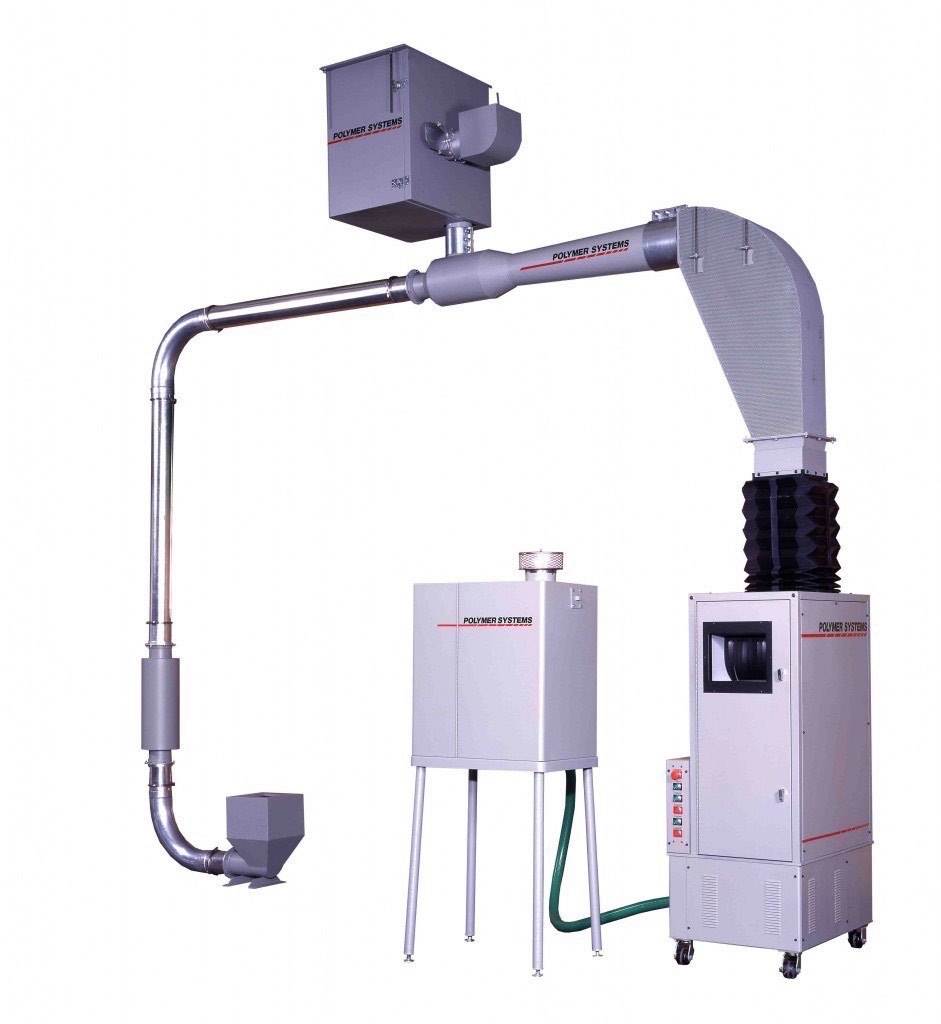

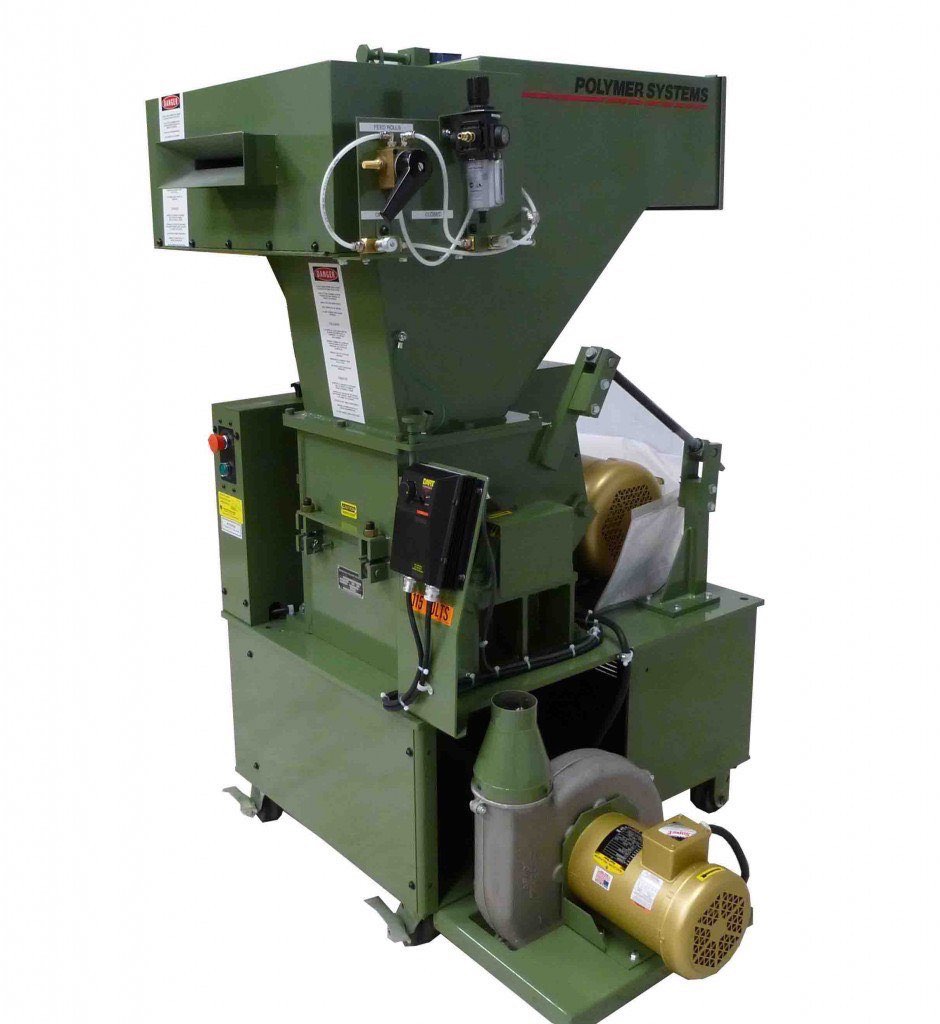

Our Press Side Granulators are available with a wide range of automation components such as special hoppers for combination robotic and manual feed; conveyor feed; oversize part, etc.; vacuum take-off bin for regrind evacuation and blower evacuation systems of various sizes, complete with unloading bins and cyclone separators.

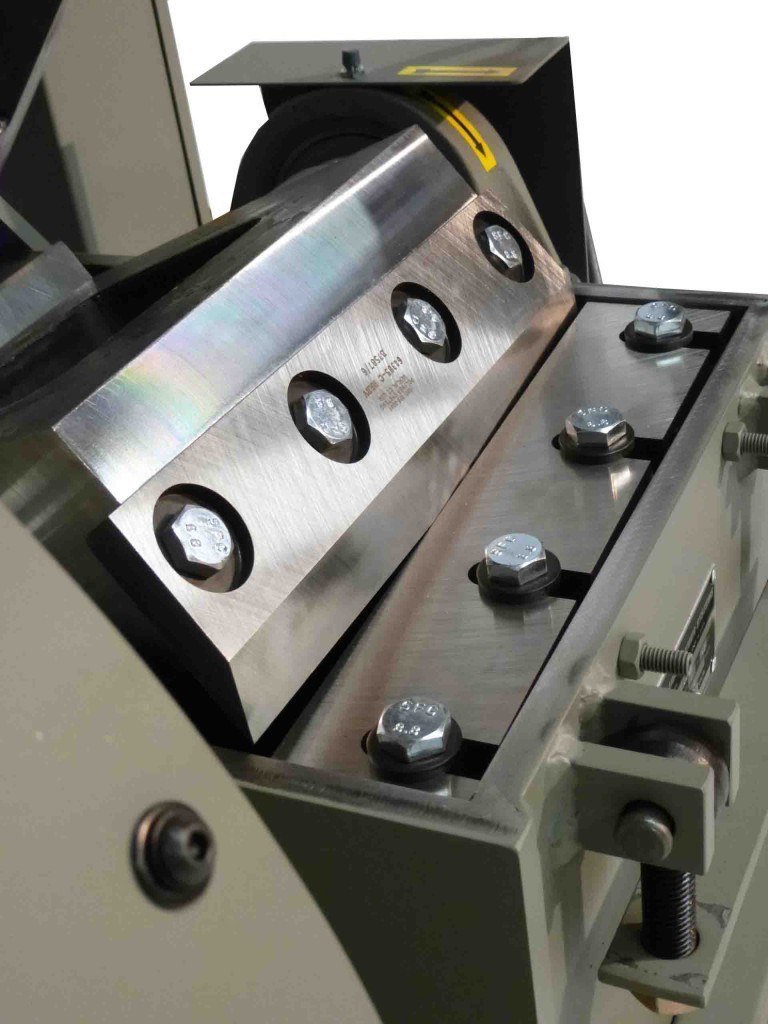

Counter-slanted rotor and bed knives provide a high shear slicing action that achieves clean, uniform granulate, with very low plastic dust and fines at high throughput rates with less noise and fines, lower energy consumption and heat buildup. The rotor diameter of Press Side Granulators is greater than the feed opening, allowing clear, unobstructed access to the cutting chamber to utilize every inch of the cutting circle. This unique design maximizes granulator capacity and throughput by eliminating bottlenecks at the entrance, and increasing the effective screen area.

Resources

Brochure

Tech Info

Video

Specifications

Model 68 912 1116 1120
Throat Size at Chamber Inches 6 x 8 9 x 12 11 x 16 11 x 20
Screen Area Sq. Inches 88 190 297 373
Motor** HP 5 7.5 – 10 10 – 15 15 – 20
Cutting Circle Diameter Inches 7 10.3 12.5 12.5
Rotor Knives Number 2 2/3 2/3 2/3
Bed Knives Number 1 1 1 1
Weight – SPL / SIL Lbs 610 / 800 1,050 / 1,200 1,500 / 1,800 1,600 / 2,200
Throughput*** Lbs/Hr 325 400 500 650
Bin Capacity Cubic Feet 1.6 3.6 3.6 6.2

Features & Specifications

  • Durable construction for years of continuous operation
  • High inertial force rotor drive

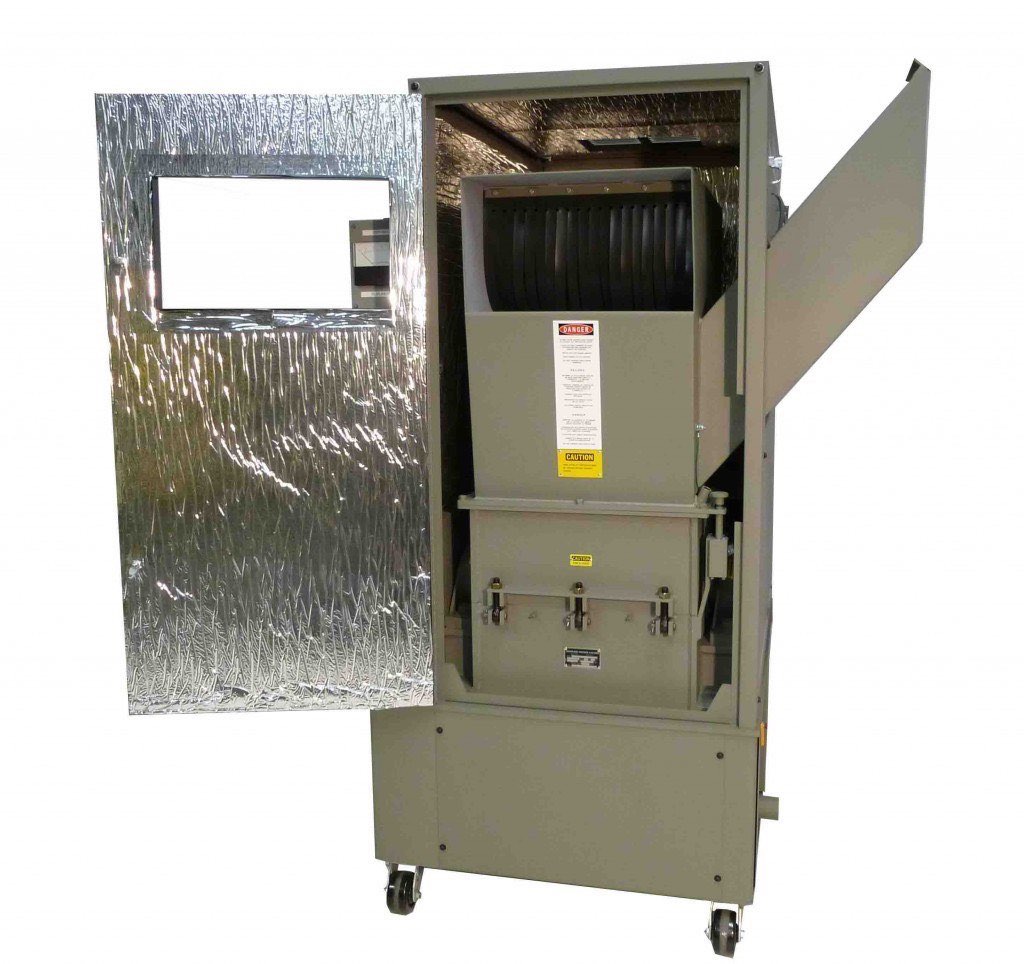

  • Triple-ply laminated hoppers for quieter operation
  • Models available for pilot scale recycling up to full production systems
  • Double Angle Cut? granulation technology
  • Throat sizes from 6″ up to 20″
  • Powered with 5 HP up to 25 HP
  • Efficient & consistent granulation
  • Easy to operate & maintain
  • Quick clean for color or material changes
  • Customizable designs with limitless capabilities

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu ? Copper wire & cables
