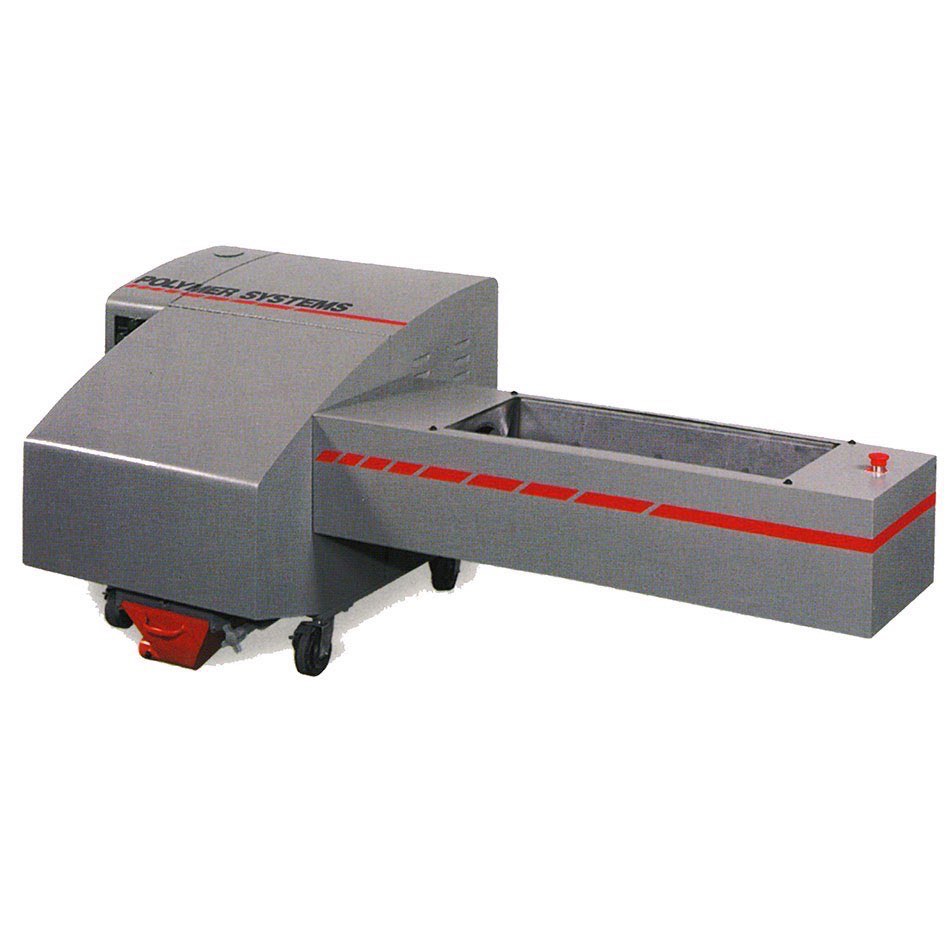

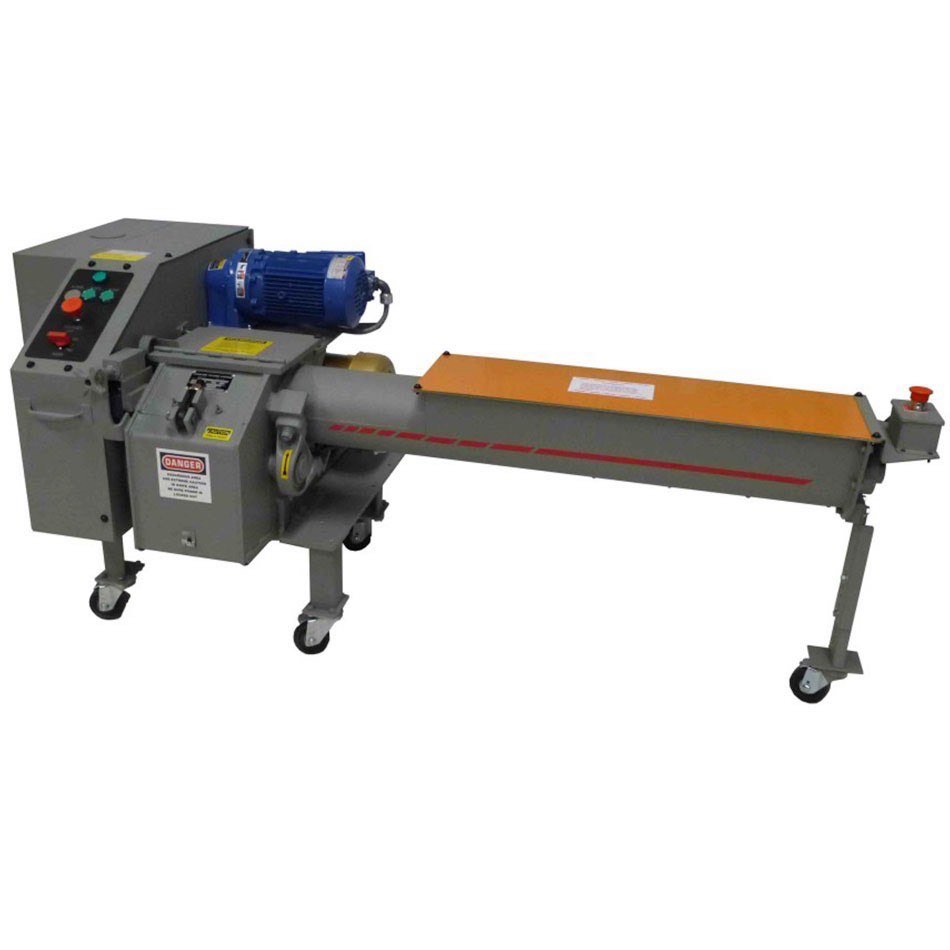

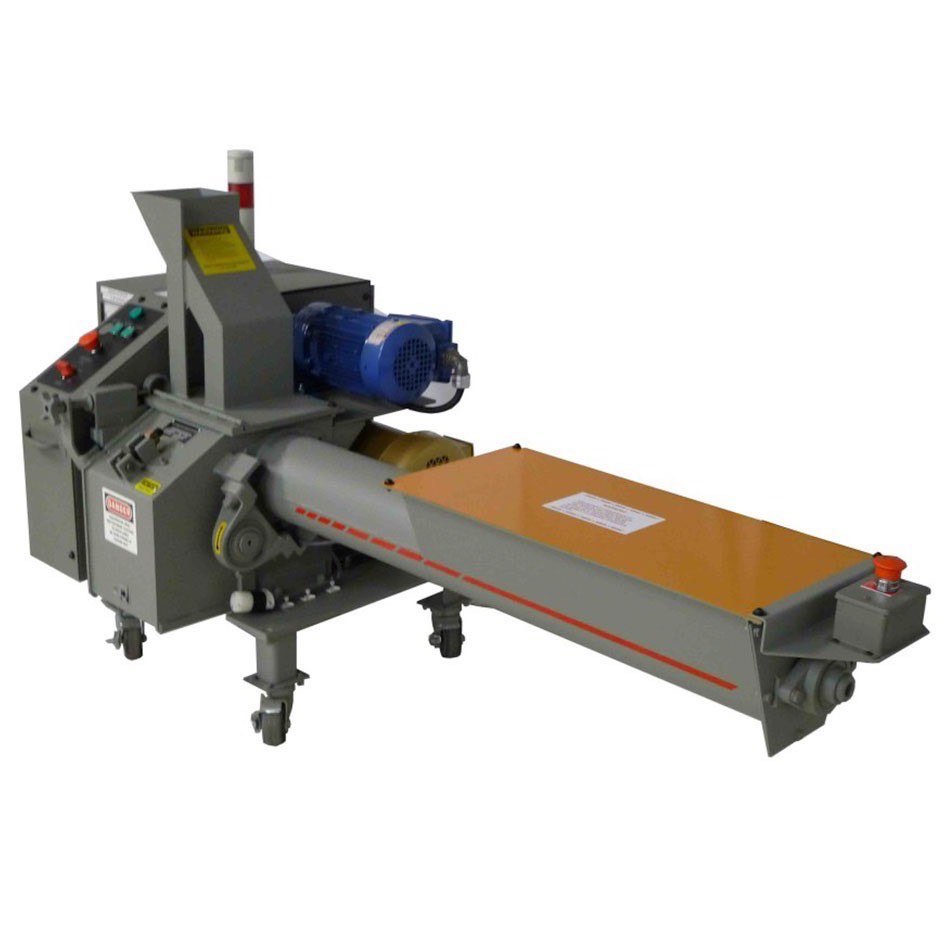

Auger Feed Granulator

Hosokawa Polymer Systems’ highly versatile Auger Feed Granulators can be customized for virtually any under-press or beside the press application.

Clean, Uniform Granulate – The high shear, Double Angle Cut slicing action produces clean, uniform granulate from thick, thin, rigid or elastomeric materials. Polymer’s counter-slanted blade configuration is considered the industries most efficient and economical granulating system, requiring less energy and producing less fines and noise than other designs.

The vast majority of auger feed granulators are used in automated setups, especially closed loop systems where regrind is immediately remolded. Therefore, Polymer Systems makes its auger feed models very easy to equip for unattended operation.

Resource

Brochure

Specifications

Model 1010
Throat Size at Chamber Inches 8 x 8 10 x 10
Granulator Motor HP 5 5
Auger Motor HP 0.75 1.5
Cutting Circle Diameter Inches 7.6 9.5
Rotor Knives Number 3 3
Bed Knives Number 2 2
Auger Diameter Inches 5 8
Flight Thickness Inches 0.375 0.375
Throughput Lbs/Hr 175 275

Features & Specifications

  • Unchokable chamber design
  • Clean & Uniform granulate
  • Easy to maintain & clean
  • Durable construction for long processing cycles
  • Automatic evacuation system
  • Various auger speed controls
  • Special feed hopper designs
  • Hardfaced cutting chambers & carbide coated knives available
  • Auger-driven part/runner separators for two-plate molds
  • Metaltector® metal detection devices
  • Zero speed switch to prevent chamber overload
  • Pneumatic parts transfer system
  • Blower evacuation systems

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu ? Copper wire & cables
  • And many other materials
