Shurfeed 2000 Granulator

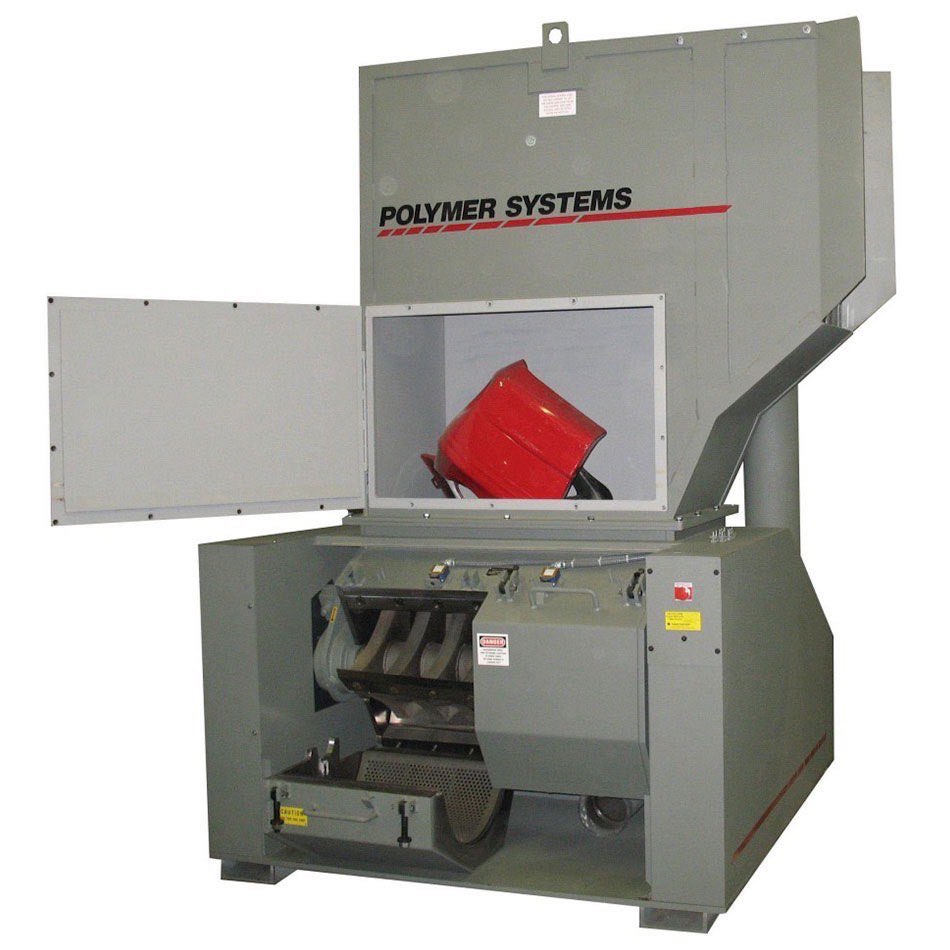

A massive high inertia rotor system mounted in heavy-duty bearings, outboard of the cutting chamber, ensures cutting of thick sections without jamming. The cutting chamber and screen cradle are of heavy-duty welded construction. Complete access is provided at rear of machine for fast, simple cleaning and adjustment.

Shurfeed cutting chamber design allows material to fall directly in front of the rotating knives and to be pulled quickly through the cutting action for fast, complete granulation without piece bounce and flyback. Three steep angle rotor knives and two bed knives mounted in Double Angle Cut configurations reduce energy consumption, noise, heat and fines, while increasing throughput.

Shurfeed® cutting chamber design allows material to fall directly in front of rotating knives to be pulled quickly through the cutting action for fast, complete granulation without piece bounce and flyback. Only Polymer Systems gives a clear, unobstructed feed opening equal to rotor diameter for maximum performance through every inch of the cutting circle. This unique design maximizes granulator capacity, eliminates bottlenecks at the entrance to the cutting chamber and dramatically increases effective screen area for fast throughput. Ask for a comparison!

Resources

Brochure

Tech Info

Specifications

Model 2030 / 2430 2036 / 2436 2042 / 2442
Throat Size at Chamber Inches 24 x 30 24 x 36 24 x 42
Screen Area Sq. Inches 730 910 1,050
Motor HP 40 – 50 50 – 100 75 – 100
Cutting Circle Diameter Inches 20 20 20
Rotor Knives Number 3 3 3
Bed Knives Number 2 2 2
Throughput Lbs/Hr 2,000 2,400 2,800
Weight Lbs 6,000 6,700 7,400

Features & Specifications

  • Positive feed – maximum throughput
  • Durable construction for years of continuous operation
  • High inertial force drive
  • Integrated evacuation blower
  • 50 HP to 100 HP available
  • Triple-ply laminated cabinet for quieter operation
  • Models available for pilot scale recycling up to full production systems
  • Double Angle Cut granulation technology
  • Easy to operate & maintain
  • Customizable designs with limitless capabilities

Typical Materials Processed

  • PVC – Polyvinylchloride
  • Nylon
  • HDPE – High Density Polyethylene
  • LDPE – Low Density Polyethylene
  • PP – Polypropylene
  • ABS
  • PET
  • PC – Polycarbonate
  • TPU – Urethanes
  • Santoprene
  • PS – Polystyrene
  • Cu  Copper wire & cables
  • And many other materials
