Film Friction Washer

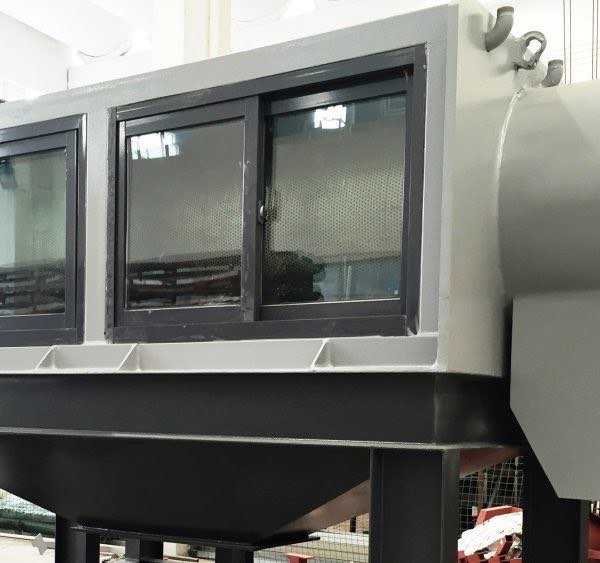

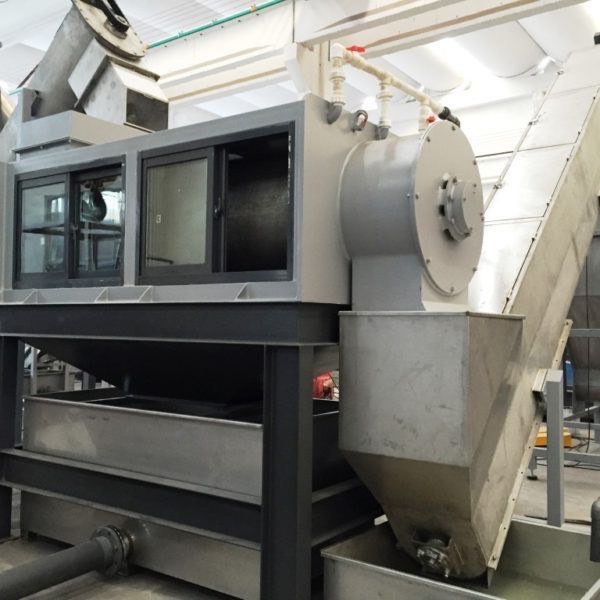

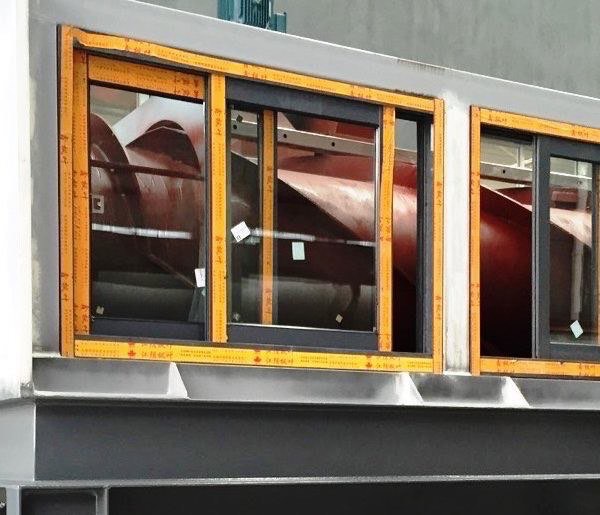

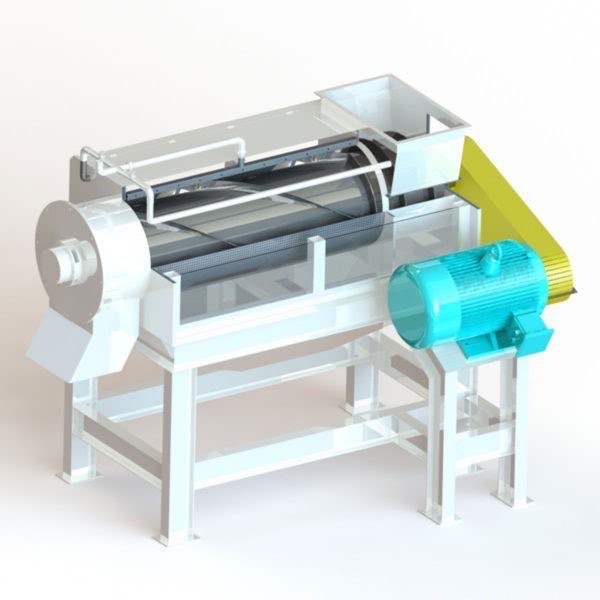

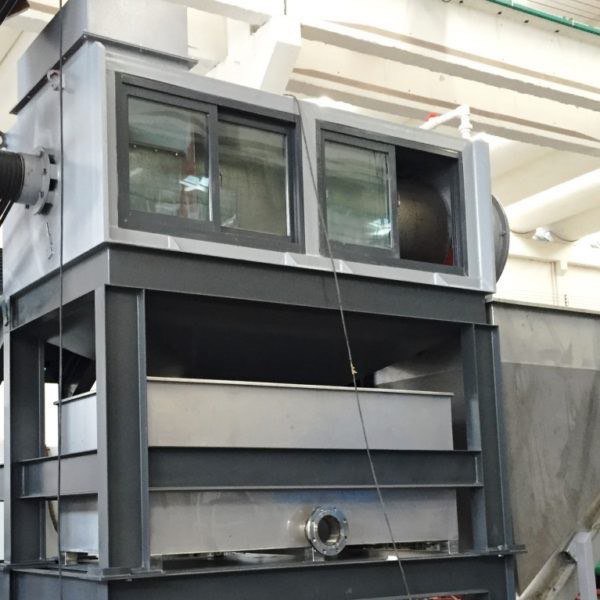

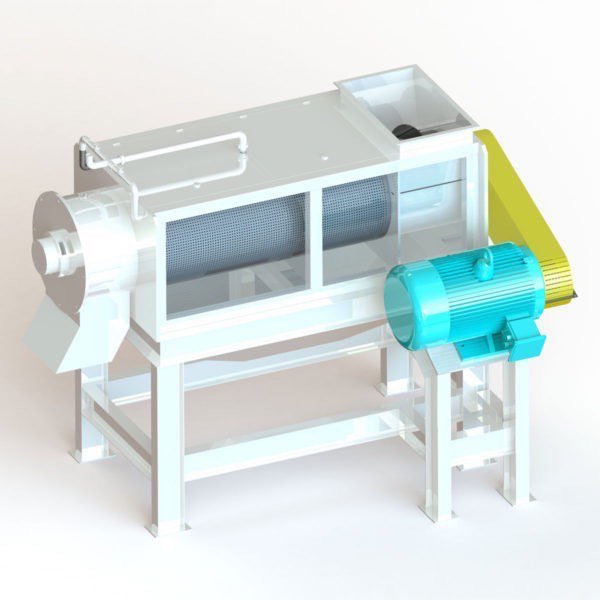

The Film Friction Washer is used to wash dirty and contaminated film flake. The Film Friction Washer consists of a unique inner rotor designed specifically for film washing.  It takes into account the high dirt content found in agricultural films, the nature of the thin film and its ability to fold onto itself and act completely opposite to rigid plastic.  The main components are the large arbor rotor with multiple helical continual beater plates, dewatering screen and cleaning manifold for water injection.  The basic principle of operation is: the plastic material with water is fed into the Film Friction Washer at the inlet of the trough. The material is washed while being transported to the outlet of the trough. Fines and water are thrown through the screen to the outside while the friction of the rotor cleans the material. The centrifuge drainage is discharged at the bottom of the trough.



Specifications

Model FW6055 FW8075
Standard capacity 700kg/H 1400kg/H

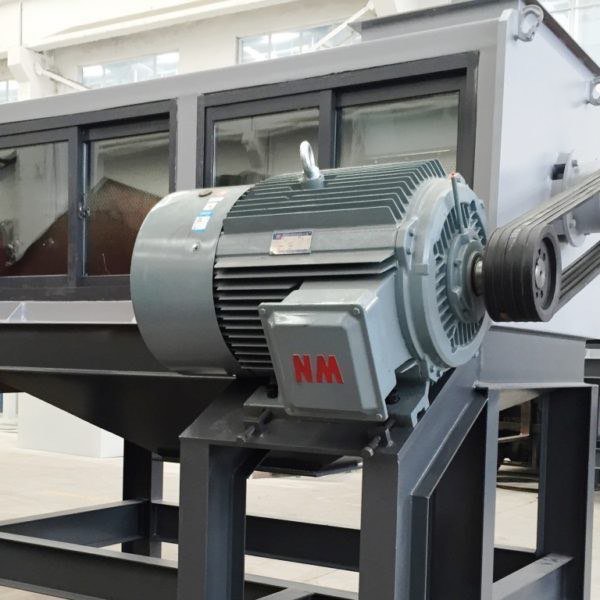

Standard motor power 55kw 75kw
Applicable capacity 500-900kg/H 1000-2000kg/H



Model FW6055 FW8075
L*W*H(A*B*C)(mm*mm*mm) 3450*1700*2000 3752*2306*2730
inlet height(C)(mm) 2000 2730
Outlet height (mm) 1000 1287
Rotating speed 1000rpm
Blades thickness 10mm
Dia.of working chamber(mm) 3-10mm
baldes material anti-wear material
screen material stainless steel(SUS304)

Features & Specifications

  • Reinforced and wear protected rotor and blades with unique highly efficient geometry
  • Dynamically balanced rotor with high speed external bearings
  • Self-cleaning system for screen to minimize screen blockage
  • The diameter of the screen holes can change according to the type and degree of the contaminants.
