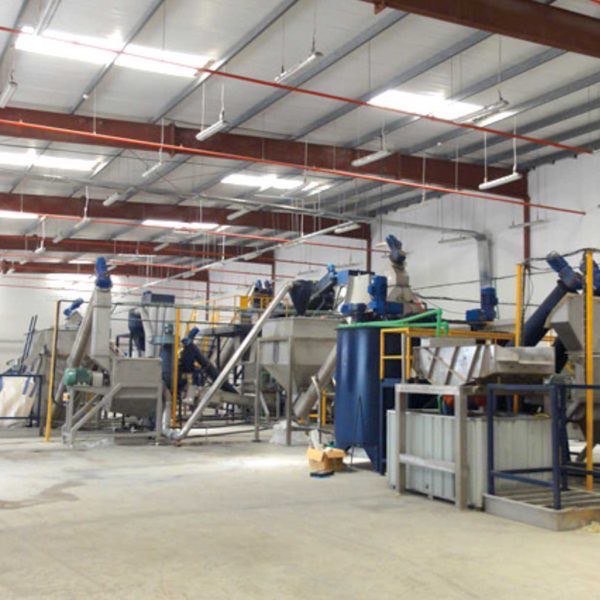

PET Washing System

PET bottle recycling is an economic opportunity to better the environment and be profitable, even when the raw material prices are low. With more than 10 years of experience in PET recycling worldwide, we provide a solution that meets your needs in value and efficiency.  From the experience gained in manufacturing a large number of recycling lines in various countries and obtaining detailed user feedbacks for all kinds of PET bottles recycling, HPS and GET continually improved our PET recycling solutions, ensuring our customers;  output capacity, flakes quality and low operation costs.

The flakes produced are suitable for the following applications:

  • Bottle to Packaging
  • Bottle to Fibers
  • Bottle to Sheet
  • Bottle to Strapping

Standard output: 1000, 2000, 3000, 4000,5000 kg/h

Specifications

Estimated plant parameters

Model Capacity (output) Power installed Area Steam Compressed Air Water supply
PET10  1000kg/h  220kw  250m^2 4000kcal 0.5m^3 2m^3
PET20 2000kg/h  260kw  350m^2 6000 kcal 0.5m^3  3m^3
PET30 3000kg/h  380kw   500m^2 8000kcal  1m^3 4.5m^3
PET50 4000kg/h  500kw   700m^2 10000 kcal 1m^3  6m^3

Unit consumption

No. Item Average consumption per ton flakes  No. Item Average consumption per ton flakes
1. Electricity 70-90kw 3. Washing  detergent 4-8kg
2. Steam 250-400kg 4. Water 1-1.5T

Flakes quality reference table

No. Description AA level(ppm) A level(ppm)
01 PVC content ≤25 ≤100
02 PE/PP/colored flakes/metal/others ≤75 ≤100
03 Total impurity ≤100 ≤200

Factory management will affect the PVC content
