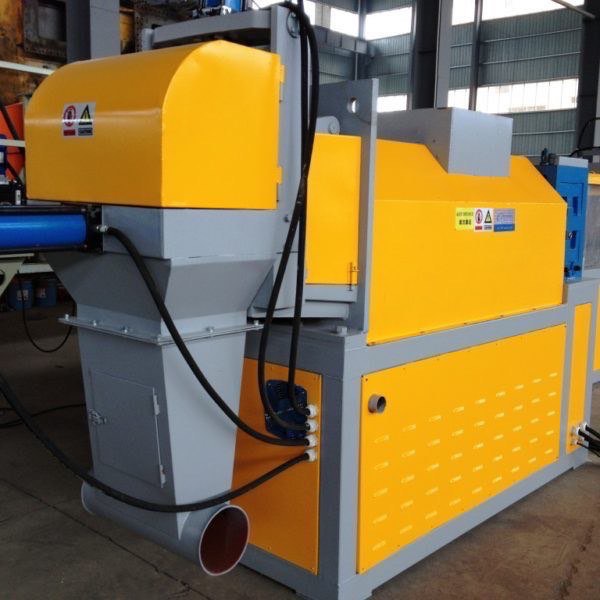

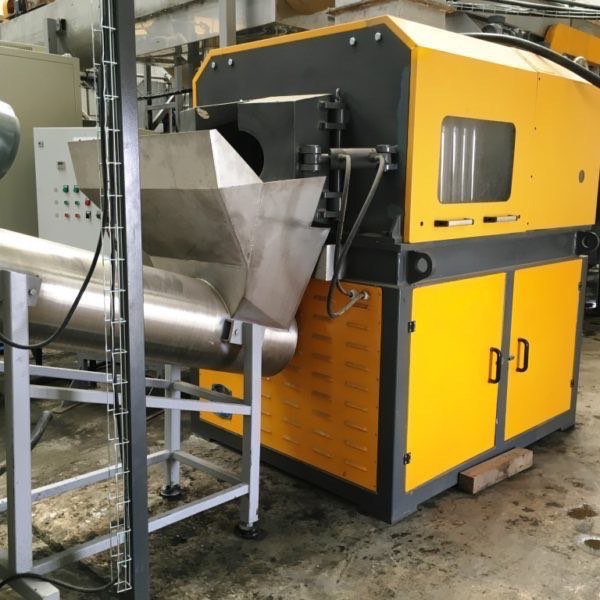

Film Squeezer

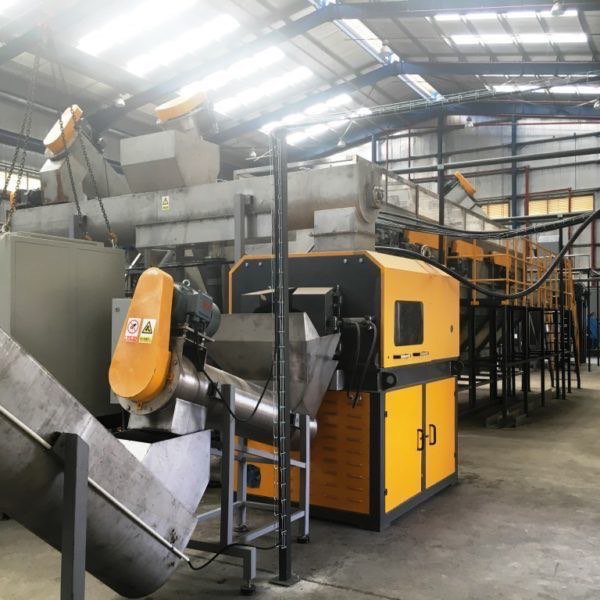

Squeezer is installed at the end of the washing lines for film dewatering.

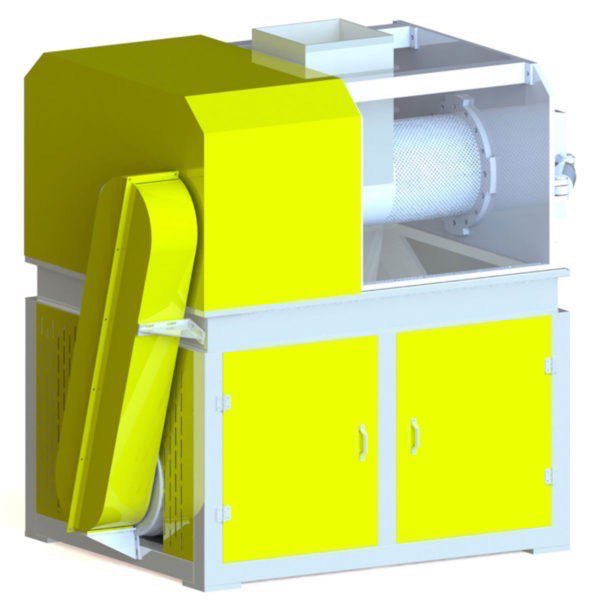

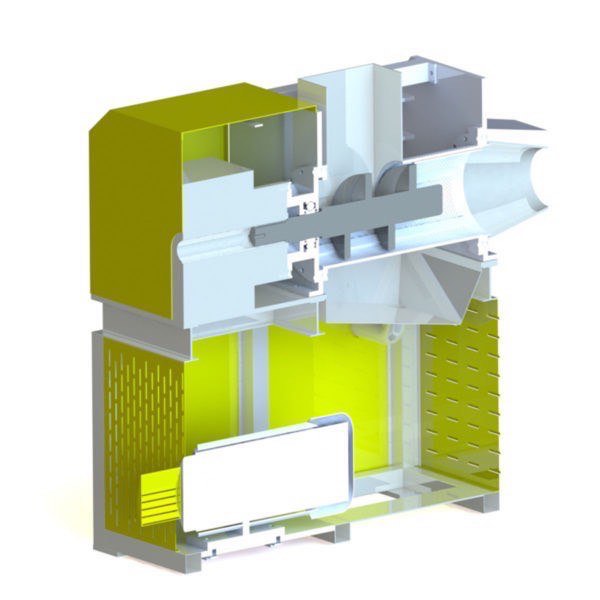

This squeezing system is based on the mechanical squeezing made by a screw working inside holed cylinder.

During pressing, there is strong friction between film scraps and holed cylinders, it makes friction heating, which is helpful for drying.

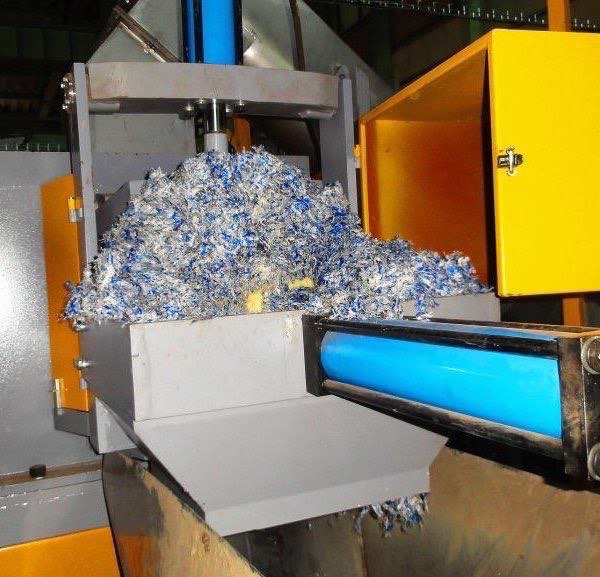

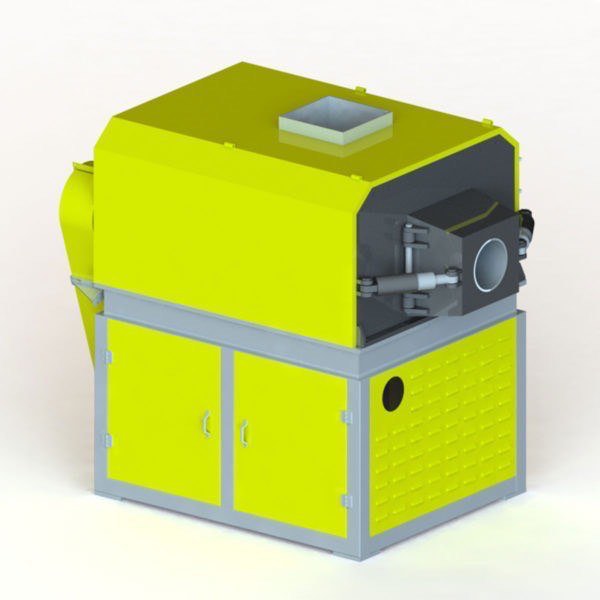

The discharging final part of the squeezer is fitting with hydraulic locks, that making narrower the discharging section. The hydraulic locks are controlled by PLC, open/lock automatically.

In this way the material becomes compact, heated, and water is removed.

Specifications

Model SQ4055 SQ5075
Standard capacity 500kg/H 1000kgkg/H
Standard motor power 55kw 75kw
Applicable capacity 400-600kg/H 900-1300kg/H



Model SQ4055 SQ5075
L*W*H(A*B*C)(mm*mm*mm) 2330*915*1800 2620*1620*2400
Height of inlet(C)(mm) 1800 2400
Height of outlet(D)(mm) 1200 1455
Inlet size (E*F)(mm*mm) 368*368 464*464
Dia. Of screw(mm) 320 418
Thickness of screw blade(mm) 30–50
Material of screw 38CrMoAl
Thickness of screen(mm) 14mm

Features & Specifications

  • Cast and machines wear resistant Alloy steel screw
  • Strong pressure cylinder with high strength and high wear resistance
  • Stepped screen holes in cylinder to eliminate blocking during film dewatering.
  • Heavy duty supporting frame
  • Hydraulic locks made by high quality steel blocks
  • Stainless steel (SUS304) water collecting hopper
  • Oversized Gearbox
  • Optional water cooling system for gearbox
  • PLC controlled
