LDPE Washing System

Plastic film is a valuable secondary resource in the plastics recycling market.  Recycled film can be used to produce wide range of products.   Waste plastic film can be in many different conditions in terms of moisture, contamination, and film type.  The plastic film recycling market is basically divided into the following families:

  • Agricultural film (including greenhouse, mulching, tunnel and banana film)
  • Post-consumer film (including film from landfills and selective collections)
  • Post-commercial and post-industrial film (including material 100% stretch)

For the film recycling industry, we offer a series of well-developed recycling lines for the efficient recycling of all kinds of film materials.

Specifications

Unit consumption

No. Item Average consumption per ton film  No. Item Average consumption per ton film
1. Electricity 180-250kw 3. Washing  detergent (optional) 0-5kg
2. Steam (optional)  0-100kg 4. Water 1.5-2.0T

Estimated plant parameters

Model Capacity (output) Power installed  Area Compressed Air Water supply
LDPE05 500kg/h 180kw 150m^2 0.5m^3 2m^3
LDPE10 1000kg/h 290kw 300m^2 0.5m^3 2m^3

Features & Specifications

  • Stainless steel construction
  • Special Film Friction Washer developed just for film cleaning
  • Wet granulators with high cutting capacity

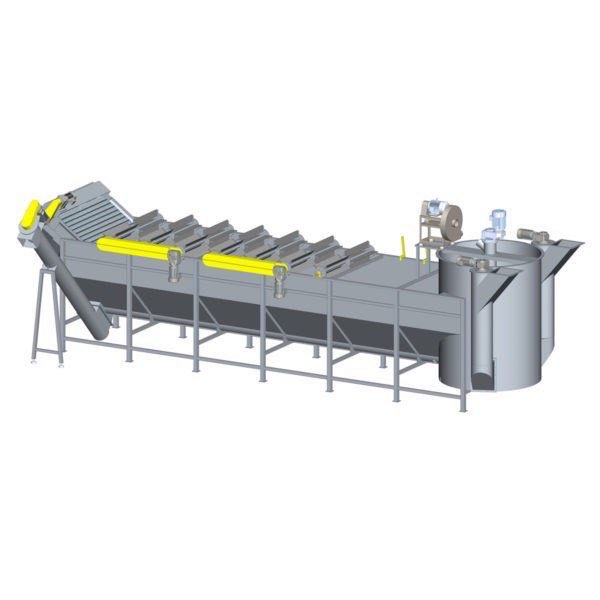

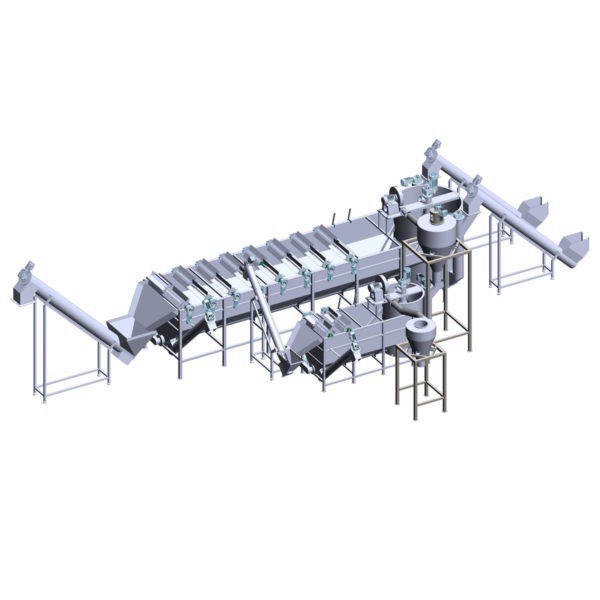

  • Sink Float Tanks for material separation
  • Unique film squeezer for drying film flake to 6% moisture without special heating

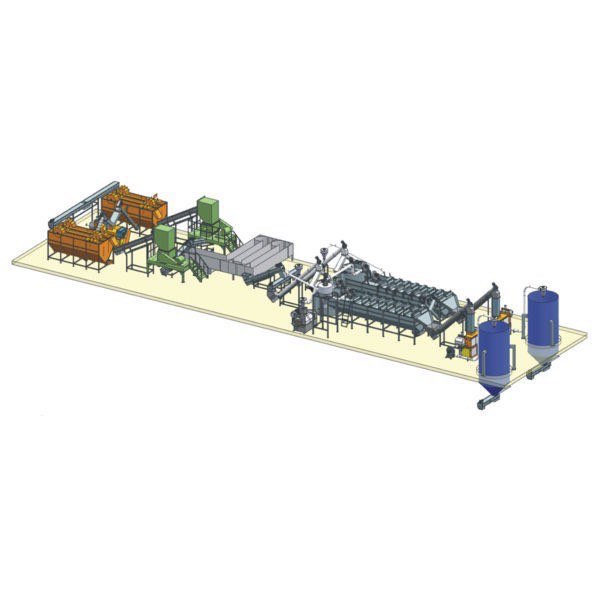

  • Integrated systems to go from field to pellet
