Delabeler

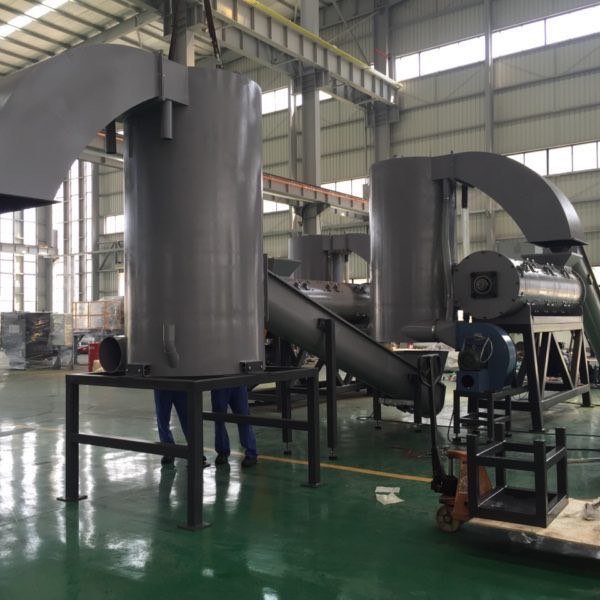

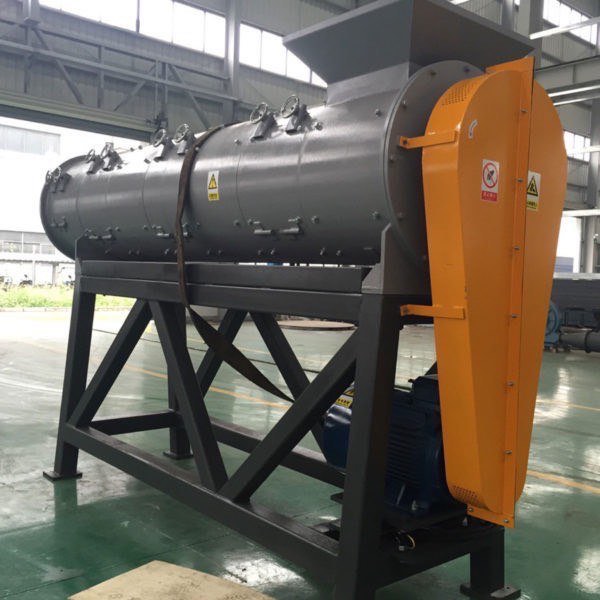

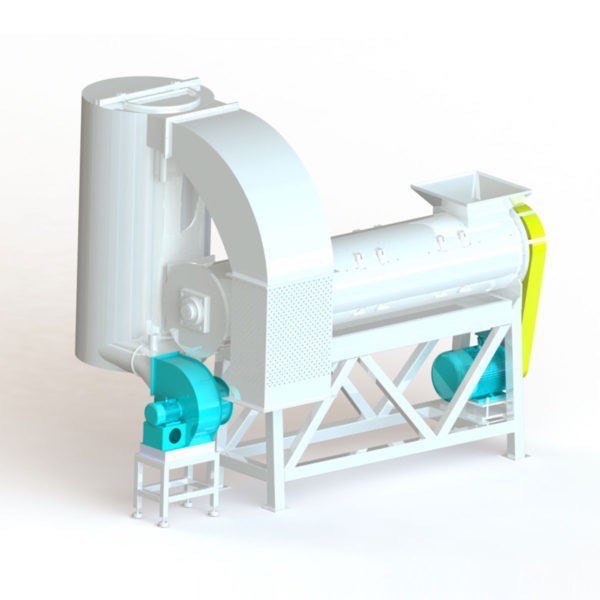

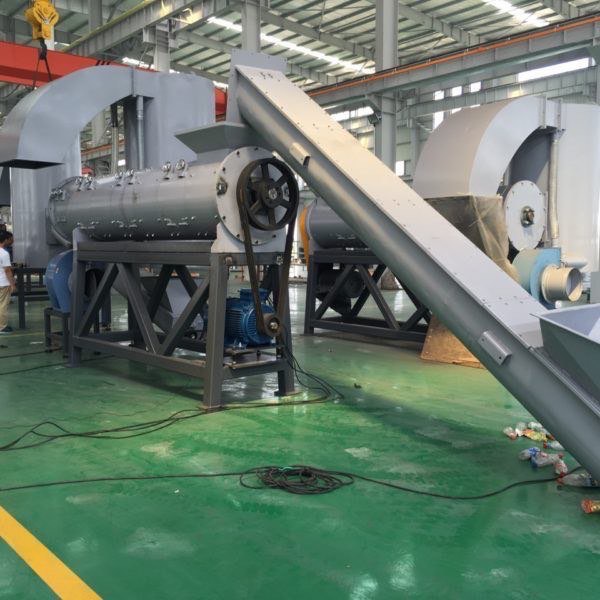

Our Label remover is mainly used for solving the serious problem, which is how to remove the PVC labels from PET bottles in PET bottle recycling process. In our delabeler, PET bottles pass through the working chamber and the labels are removed by the interaction of the bottles between the rotor blades and stator blades.  Once the Labels are removed from the bottles, we separate them from the bottles via adjustable air flow and they are collected with a cyclone.  The bottles, without labels continue through the system and exit for further processing.

The label remover is very useful, not only as separation of sleeve labels, but also as a dry pre-treatment of mixed bottles (associated with an aerodynamic separator in position to obtain an excellent and more efficient separation of the light from the bulking materials and contaminants).

Specifications

Model LM5011 LM8030
Standard capacity 700kg 1800kg
Dia.of working chamber Ø500mm Ø800mm
Applicable capacity 500-1000kg/H 1000-2000kg/H



Model LM5011 LM8030
L*W*H(A*B*C)(mm*mm*mm) 4274*2375*3090 4590*2900*3630
Inlet height(D)(mm) 2243 2530
Outlet height (mm) 1030 1100
motor power(KW) 11 30
Blower power(KW) 5.5 7.5
Dia.of working chamber(mm) Ø500mm Ø800mm

Features & Specifications

  • Strong surface decontamination as a dry pretreatment of bottles
  • Keeps the integrity of bottles and necks and prevent good material loss
  • Modular rotor blades and stator blades, ensuring easy maintenance operations and low maintenance costs
  • Exchangeable, segmented and polygon-shaped stator elements with exchangeable fitted pins in anti-wear alloy steel
  • Almost total detachment of the labels: with a flow of 100% of bottles with full body sleeves, label removing efficiency higher than 90%
